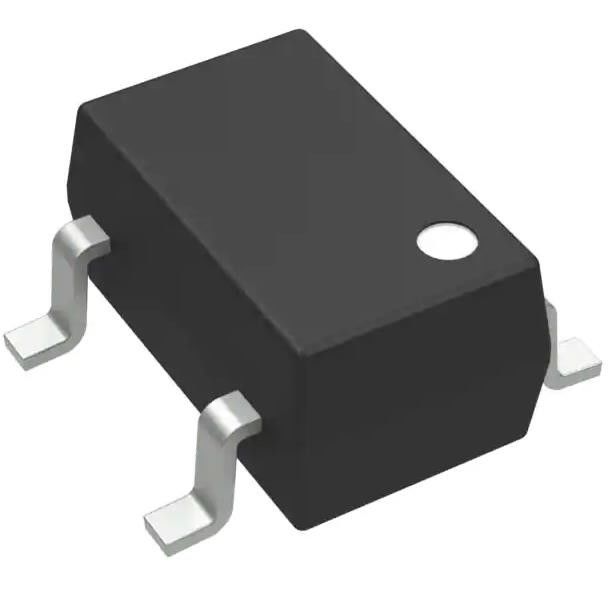

NCS7101SN1T1G General Purpose Amplifier 1 Circuit Rail-to-Rail 5-TSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCS7101SN1T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 1 |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Slew Rate: | 1.2V/µs |
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 1 PA |
| Voltage - Input Offset: | 600 µV | Current - Supply: | 1.13mA |
Product Description
NCS7101SN1T1G General Purpose Amplifier 1 Circuit Rail-to-Rail 5-TSOP
Specifications of NCS7101SN1T1G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 600 µV |
| Current - Supply | 1.13mA |
| Current - Output / Channel | 72 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| Base Product Number | NCS7101 |
Features of NCS7101SN1T1G
• Low Voltage, Single Supply Operation (1.8 V and Ground to 10 V and Ground)
• 1.0 pA Input Bias Current
• Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V
• Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V
• No Phase Reversal on the Output for Over−Driven Input Signals
• Input Offset Voltage of 9 mV Max
• Low Supply Current (ID = 1.0 mA)
• Works Down to Two Discharged NiCd Battery Cells
• ESD Protected Inputs Up to 2.0 kV
• These Devices are Pb−Free and are RoHS Compliant
• AEC−Q100 Qualified and PPAP Capable
• *NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
Descriptions of NCS7101SN1T1G
• Dual NiCd/NiMH Cell Powered Systems
• Portable Communication Devices
• Low Voltage Active Filters
• Power Supply Monitor and Control
• Interface to DSP
Environmental & Export Classifications of NCS7101SN1T1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
