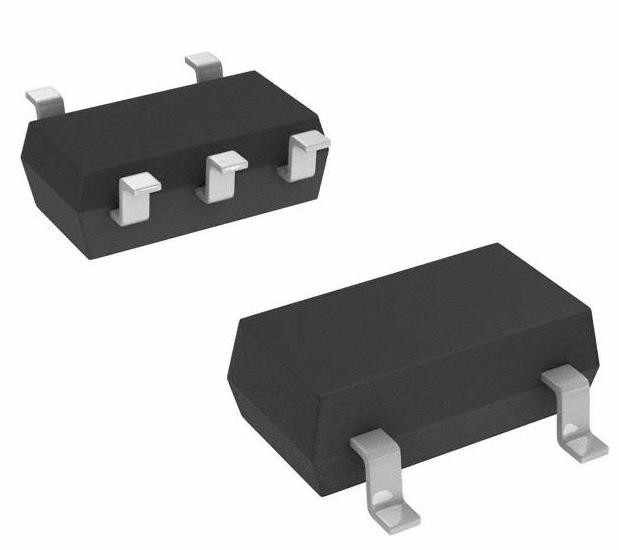

NC7SP04P5X Inverter Electronic IC Chips 1 Channel SC-70-5 0.9V ~ 3.6V 900 nA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NC7SP04P5X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Inverter | Number Of Circuits: | 1 |
|---|---|---|---|
| Number Of Inputs: | 1 | Voltage - Supply: | 0.9V ~ 3.6V |
| Current - Quiescent (Max): | 900 NA | Current - Output High, Low: | 2.6mA, 2.6mA |
| Input Logic Level - Low: | 0.7V ~ 0.9V | Input Logic Level - High: | 1.6V ~ 2.1V |
Product Description
NC7SP04P5X Inverter Electronic IC Chips 1 Channel SC-70-5 0.9V ~ 3.6V 900 nA
Specifications of NC7SP04P5X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 7SP |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.7V ~ 0.9V |
| Input Logic Level - High | 1.6V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 7SP04 |
Features of NC7SP04P5X
* 0.9V to 3.6V VCC Supply Operation
* 3.6V Over-Voltage Tolerant I/Os at VCC from 0.9V to 3.6V
* Propagation Delay (t PD):
-4.0ns Typical for 3.0V to 3.6V VCC
-5.0ns Typical for 2.3V to 2.7V VCC
-6.0ns Typical for 1.65V to 1.95V V CC
-7.0ns Typical for 1.40V to 1.60V V CC
-11.0ns Typical for 1.10V to 1.30V V CC
-27.0ns Typical for 0.90V V CC
* Power-Off High-Impedance Inputs and Outputs
* Static Drive (I OH/I OL ):
- ± 2.6mA at 3.00V V CC
- ± 2.1mA at 2.30V V CC
- ± 1.5mA at 1.65V V CC
- ± 1.0mA at 1.40V V CC
- ± 0.5mA at 1.10V V CC
- ± 20μA at 0.9V VCC
* Quiet Series™ Noise / EMI Reduction Circuitry
* Ultra Small MicroPak™ Packages
* Ultra Low Dynamic Power
Descriptions of NC7SP04P5X
The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) series of TinyLogic®. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the V CC operating range of 0.9V to 3.6V.
Environmental & Export Classifications of NC7SP04P5X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
