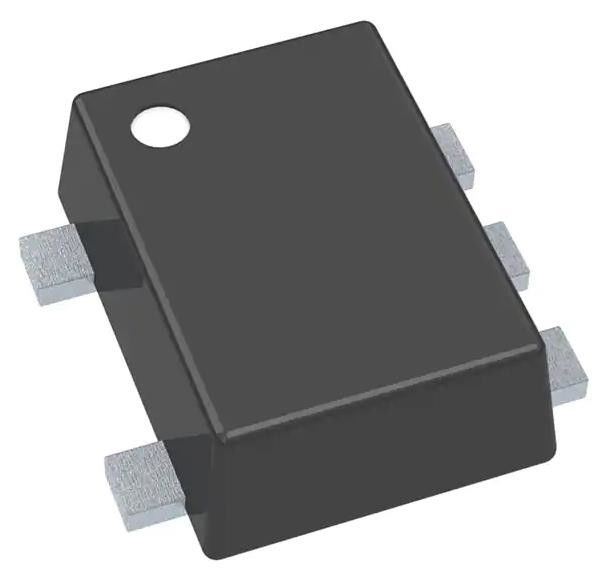

NL17SZ14XV5T2G Inverter IC 1 Channel Schmitt Trigger SOT-553
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NL17SZ14XV5T2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 1 | Number Of Inputs: | 1 |
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 32mA, 32mA | Input Logic Level - Low: | 0.2V ~ 1.2V |
Product Description
NCP114BMX300TCG Linear Voltage Regulator IC Positive Fixed 1 Output 300mA
Specifications of NL17SZ14XV5T2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 17SZ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.2V ~ 1.2V |
| Input Logic Level - High | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-553 |
| Package / Case | SOT-553 |
| Base Product Number | 17SZ14 |
Features of NL17SZ14XV5T2G
• Designed for 1.65 V to 5.5 V VCC Operation
• 3.7 ns tPD at VCC = 5 V (typ)
• Input/Output Overvoltage Tolerant up to 5.5 V
• IOFF Supports Partial Power Down Protection
• Source/Sink 24 mA at 3.0 V
• Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6 Packages
• Chip Complexity < 100 FETs
• −Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NL17SZ14XV5T2G
The NL17SZ14 is a single inverter with Schmitt trigger in tiny footprint packages.
Environmental & Export Classifications of NL17SZ14XV5T2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
