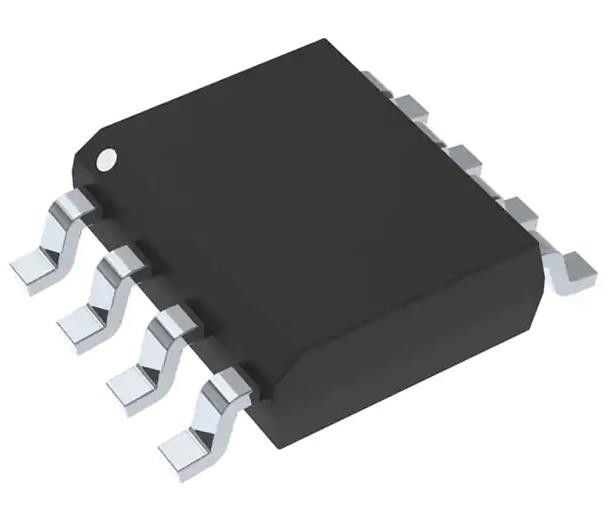

LMV358DR2G Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV358DR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Voltage Feedback | Number Of Circuits: | 2 |
|---|---|---|---|
| Output Type: | Rail-to-Rail | Slew Rate: | 1V/µs |
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 1 NA |
| Voltage - Input Offset: | 1.7 MV | Current - Supply: | 100µA (x2 Channels) |
| Current - Output / Channel: | 160 MA | Voltage - Supply Span (Min): | 2.7 V |
Product Description
LMV358DR2G Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Specifications of LMV358DR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 1 nA |
| Voltage - Input Offset | 1.7 mV |
| Current - Supply | 100µA (x2 Channels) |
| Current - Output / Channel | 160 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LMV358 |
Features of LMV358DR2G
• Operation from 2.7 V to 5.0 V Single−Sided Power Supply
• LMV321 Single Available in Ultra Small 5 Pin SC70 Package
• No Output Crossover Distortion
• Rail−to−Rail Output
• Low Quiescent Current: LMV358 Dual − 220 A, Max per Channel
• No Output Phase−Reversal from Overdriven Input
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of LMV358DR2G
Notebook Computers and PDA’s
• Portable Battery−Operated Instruments
• Active Filters
Environmental & Export Classifications of LMV358DR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
