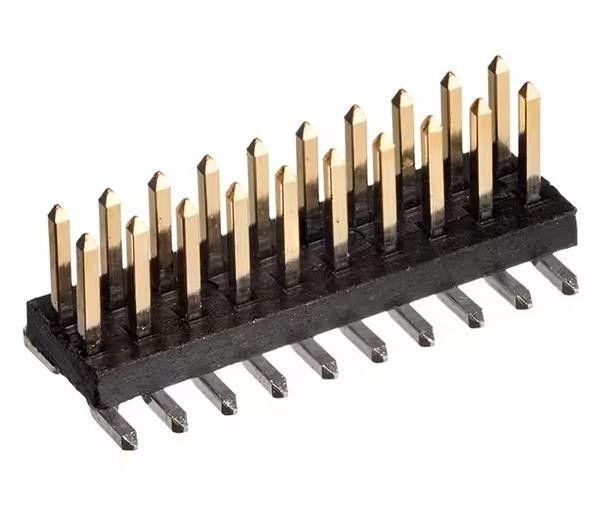

M50-3611042R Connector Header Surface Mount 20 position 0.050" (1.27mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M50-3611042R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Pitch - Mating: | 0.050" (1.27mm) | Number Of Positions: | 20 |
|---|---|---|---|
| Number Of Rows: | 2 | Row Spacing - Mating: | 0.050" (1.27mm) |
| Number Of Positions Loaded: | All | Contact Length - Mating: | 0.118" (3.00mm) |
| Insulation Height: | 0.039" (1.00mm) | Contact Finish Thickness - Mating: | 1.00µin (0.025µm) |
Product Description
M50-3611042R Connector Header Surface Mount 20 position 0.050" (1.27mm)
Specifications of M50-3611042R
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Harwin Inc. |
| Series | Archer M50 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.118" (3.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.039" (1.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Pick and Place |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Applications | - |
| Base Product Number | M50-361 |
Environmental & Export Classifications of M50-3611042R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
