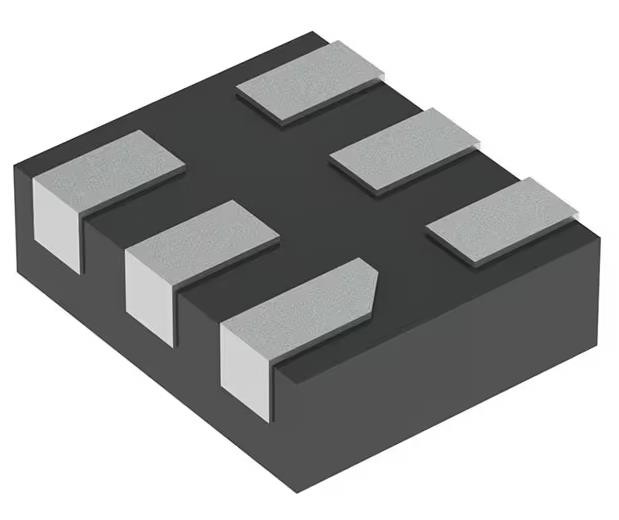

NLU1G08MUTCG AND Gate Electronic IC Chips 1 Channel 6-UDFN (1.2x1)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NLU1G08MUTCG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | AND Gate | Number Of Circuits: | 1 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 1.65V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 8mA, 8mA |
| Max Propagation Delay @ V, Max CL: | 7.9ns @ 5V, 50pF | Operating Temperature: | -55°C ~ 125°C |
Product Description
NLU1G08MUTCG AND Gate Electronic IC Chips 1 Channel 6-UDFN (1.2x1)
Specifications of NLU1G08MUTCG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | MiniGate™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | - |
| Input Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFN (1.2x1) |
| Package / Case | 6-UFDFN |
| Base Product Number | NLU1G08 |
Features of NLU1G08MUTCG
• High Speed: tPD = 3.5 ns (Typ) @ VCC = 5.0 V
• Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C
• Power Down Protection Provided on inputs
• Balanced Propagation Delays
• Overvoltage Tolerant (OVT) Input and Output Pins
• Ultra−Small Packages
• These are Pb−Free Devices
Descriptions of NLU1G08MUTCG
The NLU1G08 MiniGatet is an advanced high−speed CMOS2−input AND gate in ultra−small footprint.
The NLU1G08 input and output structures provide protection whenvoltages up to 7.0 V are applied, regardless of the supply voltage.
Environmental & Export Classifications of NLU1G08MUTCG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
