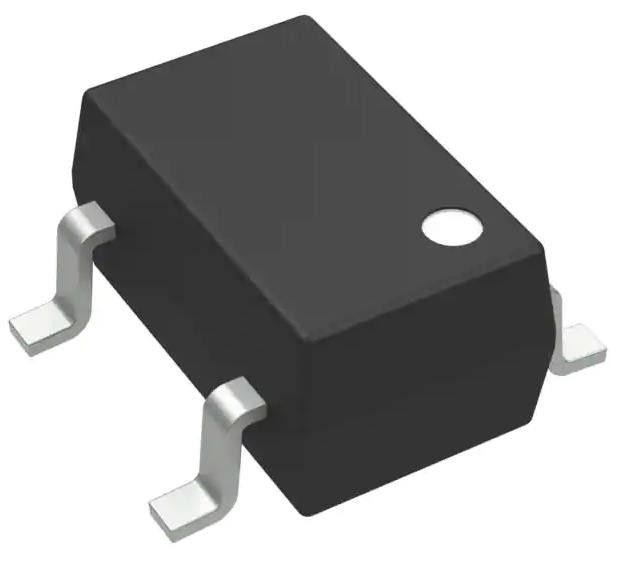

NCP301LSN46T1G Supervisor Open Drain or Open Collector 1 Channel 5-TSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP301LSN46T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Simple Reset/Power-On Reset | Number Of Voltages Monitored: | 1 |
|---|---|---|---|
| Voltage - Threshold: | 4.6V | Output: | Open Drain Or Open Collector |
| Reset: | Active Low | Operating Temperature: | -40°C ~ 125°C (TA) |
Product Description
MMSZ4680ET1G Zener Diode 2.2 V 500 mW ±5% Surface Mount SOD-123
Specifications of NCP301LSN46T1G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 4.6V |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-TSOP |
| Base Product Number | NCP301 |
Features of NCP301LSN46T1G
• Quiescent Current of 0.5 A Typical
• High Accuracy Undervoltage Threshold of 2.0%
• Wide Operating Voltage Range of 0.8 V to 10 V
• Complementary or Open Drain Reset Output
• Active Low or Active High Reset Output
• Specified Over the −40°C to +125°C Temperature Range (Except for Voltage Options from 0.9 to 1.1 V)
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Descriptions of NCP301LSN46T1G
• Microprocessor Reset Controller
• Low Battery Detection
• Power Fail Indicator
• Battery Backup Detection
Environmental & Export Classifications of NCP301LSN46T1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
