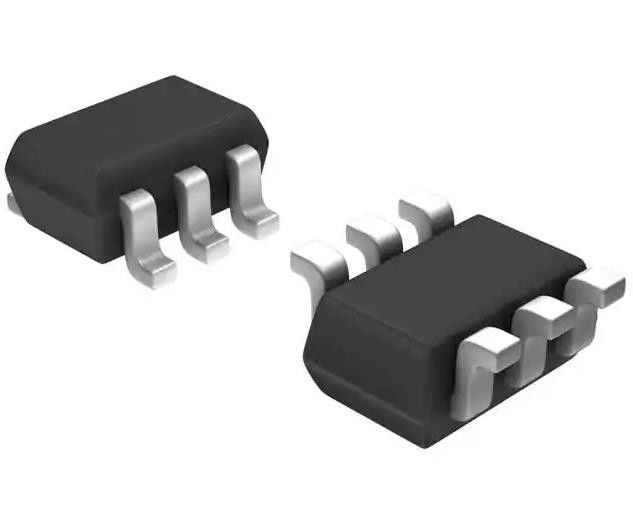

MBD770DWT1G RF Diode Schottky - 2 Independent 70V 100 mA 380 mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MBD770DWT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Type: | Schottky - 2 Independent | Voltage - Peak Reverse (Max): | 70V |
|---|---|---|---|
| Current - Max: | 100 MA | Capacitance @ Vr, F: | 1pF @ 20V, 1MHz |
| Power Dissipation (Max): | 380 MW | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
MBD770DWT1G RF Diode Schottky - 2 Independent 70V 100 mA 380 mW
Specifications of MBD770DWT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| RF Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Diode Type | Schottky - 2 Independent |
| Voltage - Peak Reverse (Max) | 70V |
| Current - Max | 100 mA |
| Capacitance @ Vr, F | 1pF @ 20V, 1MHz |
| Resistance @ If, F | - |
| Power Dissipation (Max) | 380 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
| Base Product Number | MBD770 |
Features of MBD770DWT1G
• Extremely Fast Switching Speed
• Low Forward Voltage
• AEC Qualified and PPAP Capable
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant*
Descriptions of MBD770DWT1G
These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.
Environmental & Export Classifications of MBD770DWT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
