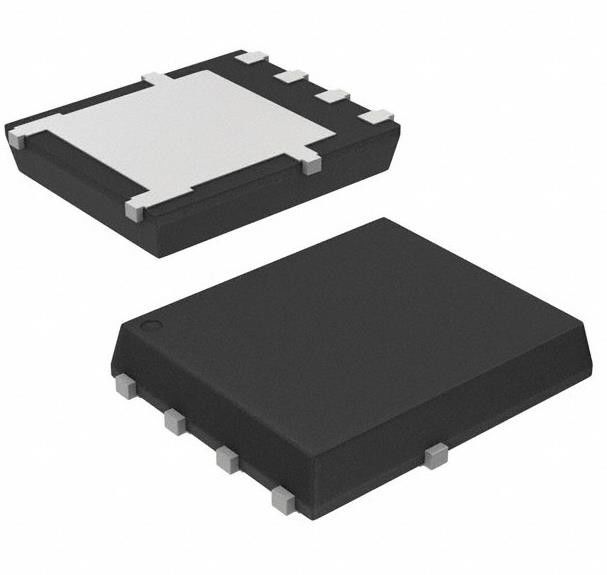

MBR860MFST1G Diode 60 V 8A Surface Mount 5-DFN (5x6) (8-SOFL)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MBR860MFST1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 60 V | Current - Average Rectified (Io): | 8A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If): | 800 MV @ 8 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 150 µA @ 60 V | Mounting Type: | Surface Mount |
Product Description
MBR860MFST1G Diode 60 V 8A Surface Mount 5-DFN (5x6) (8-SOFL)
Specifications of MBR860MFST1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | MBR860 |
Features of MBR860MFST1G
• Low Power Loss / High Efficiency
• New Package Provides Capability of Inspection and Probe After Board Mounting
• Guardring for Stress Protection
• Low Forward Voltage Drop
• 175°C Operating Junction Temperature
• Wettable Flacks Option Available
• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These are Pb−Free Devices
Descriptions of MBR860MFST1G
• Case: Epoxy, Molded
• Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in.
• Lead Finish: 100% Matte Sn (Tin)
• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Device Meets MSL 1 Requirements
Environmental & Export Classifications of MBR860MFST1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
