MC74HCT32ADR2G OR Gate IC 4 Channel 14-SOIC 4.5V ~ 5.5V 4mA, 4mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC74HCT32ADR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | OR Gate | Number Of Circuits: | 4 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 4.5V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 4mA, 4mA |
| Input Logic Level - Low: | 0.8V | Input Logic Level - High: | 2V |
Product Description

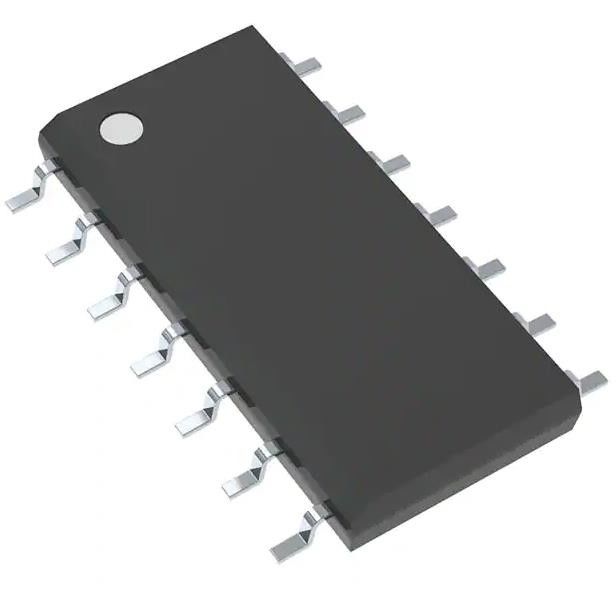

MC74HCT32ADR2G OR Gate IC 4 Channel 14-SOIC 4.5V ~ 5.5V 4mA, 4mA
Specifications of MC74HCT32ADR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 74HCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74HCT32 |
Features of MC74HCT32ADR2G
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 V to 6.0 V
• Low Input Current: 1 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 48 FETs or 12 Equivalent Gates
• These are Pb−Free Devices
Descriptions of MC74HCT32ADR2G
The MC74HCT32A is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS or LSTTL outputs.
Environmental & Export Classifications of MC74HCT32ADR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
