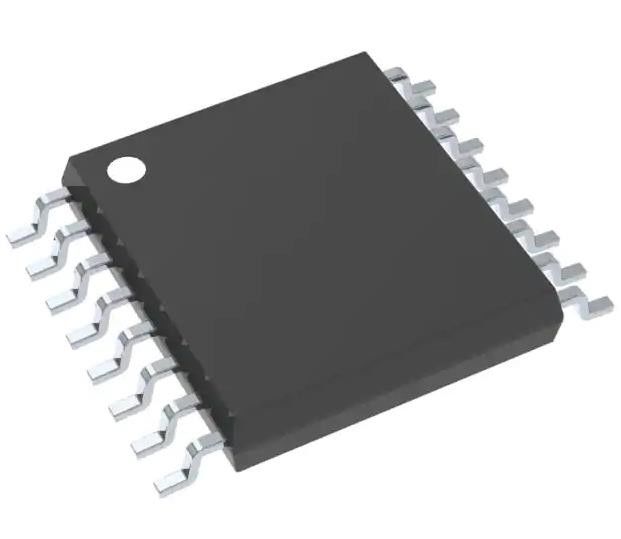

LM5026MTX/NOPB Converter Regulator Positive Isolation Output DC Controller IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5026MTX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Transistor Driver | Function: | Step-Up/Step-Down |
|---|---|---|---|
| Output Configuration: | Positive, Isolation Capable | Number Of Outputs: | 2 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 8V ~ 15V |
| Frequency - Switching: | 200kHz ~ 590kHz | Duty Cycle (Max): | 70%, 80% |
Product Description
LM5026MTX/NOPB Converter Regulator Positive Isolation Output DC Controller IC
Specifications of LM5026MTX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Frequency - Switching | 200kHz ~ 590kHz |
| Duty Cycle (Max) | 70%, 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control, Reset, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | LM5026 |
Features of LM5026MTX/NOPB
* Current-Mode Control
* Internal 100-V Start-Up Bias Regulator
* 3-A Compound Main Gate Driver
* High Bandwidth Optocoupler Interface
* Programmable Line Undervoltage Lockout (UVLO)With Adjustable Hysteresis
* Versatile Dual Mode Overcurrent Protection WithHiccup Delay Timer
* Programmable Overlap or Deadtime between theMain and Active Clamp Outputs
* Programmable Maximum Duty Cycle Clamp
* Programmable Soft-Start
* Leading Edge Blanking
* Resistor Programmed 1-MHz Capable Oscillator
* Oscillator Sync I/0 Capability
* Precision 5-V Reference
Descriptions of LM5026MTX/NOPB
• Server Power Supplies
• 48-V Telecom Power Supplies
• High Efficiency DC–DC Power Supplies
Environmental & Export Classifications of LM5026MTX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
