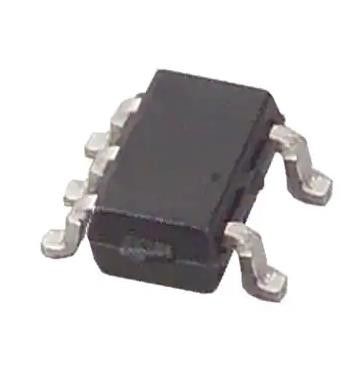

MAX9140AAXK/V+T Comparator General Purpose CMOS, Push-Pull, TTL SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX9140AAXK/V+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | General Purpose | Number Of Elements: | 1 |
|---|---|---|---|
| Output Type: | CMOS, Push-Pull, TTL | Voltage - Supply, Single/Dual (±): | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max): | 6mV @ 5V | Current - Input Bias (Max): | 0.35µA @ 5V |
| Current - Quiescent (Max): | 400µA | CMRR, PSRR (Typ): | 61.41dB CMRR, 61.94dB PSRR |
Product Description
MAX9140AAXK/V+T Comparator General Purpose CMOS, Push-Pull, TTL SC-70-5
Specifications of MAX9140AAXK/V+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, TTL |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 6mV @ 5V |
| Current - Input Bias (Max) | 0.35µA @ 5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 400µA |
| CMRR, PSRR (Typ) | 61.41dB CMRR, 61.94dB PSRR |
| Propagation Delay (Max) | 40ns |
| Hysteresis | 1.5mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Base Product Number | MAX9140 |
Features of IS42S16800F-6TL
● Fast, 40ns Propagation Delay (10mV Overdrive)
● Low Power
• 150μA Supply Current Per Comparator (3V)
● Optimized for 3V and 5V Applications
● Rail-to-Rail Input Voltage Range
● Low, 500μV Offset Voltage
● Internal Hysteresis for Clean Switching
● Outputs Swing 300mV of Power Rails
● CMOS/TTL-Compatible Outputs
● Output Latch (MAX9141 Only)
● Shutdown Function (MAX9141 Only)
● Available in SC70 and SOT23 Packages
● AEC-Q100 Qualified (MAX9140AAXK/V+T Only)
Descriptions of MAX9140AAXK/V+T
● Line Receivers
● Battery-Powered Systems
● Threshold Detectors/Discriminators
● 3V/5V Systems
● Zero-Crossing Detectors
● Sampling Circuits
Environmental & Export Classifications of MAX9140AAXK/V+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
