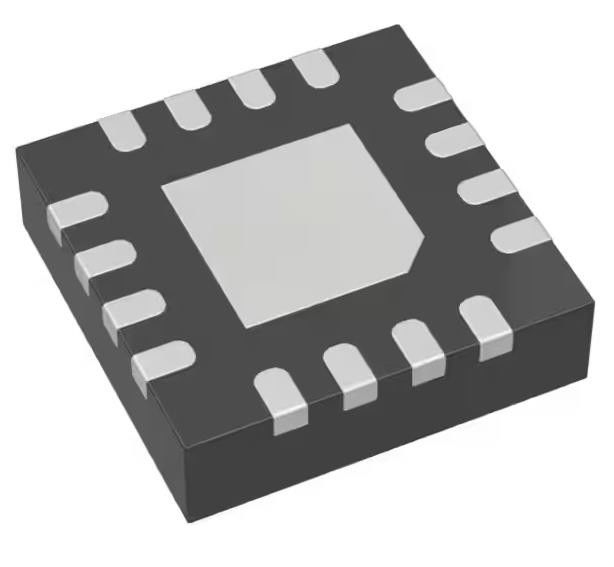

LTC3226IUD#PBF Supercapacitor Charger PMIC 16-QFN (3x3) Electronic IC Chips
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC3226IUD#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Applications: | Supercapacitor Charger |
|---|---|---|---|
| Current - Supply: | 10µA | Voltage - Supply: | 2.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | 16-WFQFN Exposed Pad |
Product Description
LTC3226IUD#PBF Supercapacitor Charger PMIC 16-QFN (3x3) Electronic IC Chips
Specifications of LTC3226IUD#PBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Management - Specialized | |
| Mfr | Analog Devices Inc. |
| Series | PowerPath™ |
| Package | Tube |
| Applications | Supercapacitor Charger |
| Current - Supply | 10µA |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | LTC3226 |
Features of LTC3226IUD#PBF
* 1x/2x Multimode Charge Pump Supercapacitor Charger
* Automatic Cell Balancing
* Ideal Diode Main PowerPath™ Controller (VIN to VOUT)
* Internal 2A LDO Backup Supply (CPO to VOUT)
* Automatic Main/Backup Switchover
* Input Voltage Range: 2.5V to 5.5V
* Programmable SCAP Charge Voltage
* Programmable Input Current Limit (315mA Max)
* No Load IVIN = 55μA (Typical)
* Low Profile, 16-Lead 3mm × 3mm QFN Package
Descriptions of LTC3226IUD#PBF
* Smart Power Meters
* Battery-Powered Industrial/Medical Equipment
* 3.3V Solid-State Drives
* Industrial Alarms
* Data Backup Supplies
* Battery Hold-Up Supplies
Environmental & Export Classifications of LTC3226IUD#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
