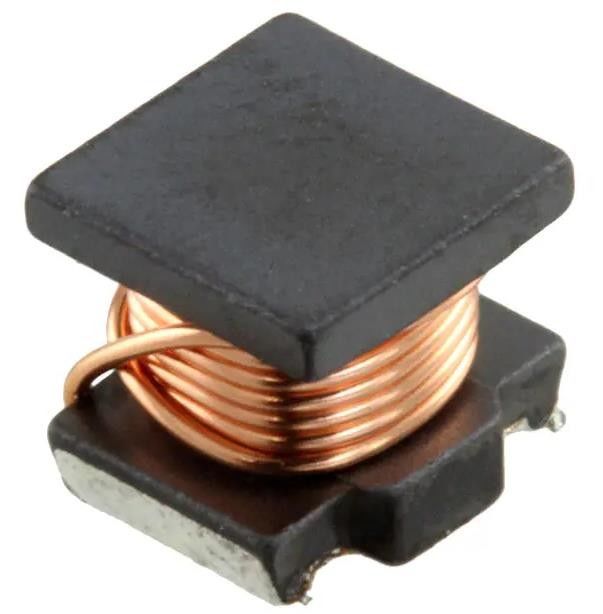

LQH55DNR12M03L 120 nH Unshielded Drum Core Wirewound Inductor 6 A 9.8mOhm Max 2220
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LQH55DNR12M03L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Drum Core, Wirewound | Material - Core: | Ferrite |
|---|---|---|---|
| Inductance: | 120 NH | Tolerance: | ±20% |
| Current Rating (Amps): | 0.25 | Shielding: | Unshielded |
| DC Resistance (DCR): | 9.8mOhm Max | Frequency - Self Resonant: | 450MHz |
| Operating Temperature: | -40°C ~ 85°C | Inductance Frequency - Test: | 1 MHz |
Product Description
LQH55DNR12M03L 120 nH Unshielded Drum Core Wirewound Inductor 6 A 9.8mOhm Max 2220
Specifications of LQH55DNR12M03L
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Murata Electronics |
| Series | LQH55 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 0.25 |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 450MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Supplier Device Package | 2220 (5650 Metric) |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | LQH55DN |
Features of LQH55DNR12M03L
・Operating Temperature Range -40 to +80°C
・Storage Temperature Range -40 to +85°C
Descriptions of LQH55DNR12M03L
This reference specification applies to LQH55DN Series, Chip coil (Chip Inductors).
Environmental & Export Classifications of LQH55DNR12M03L
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
