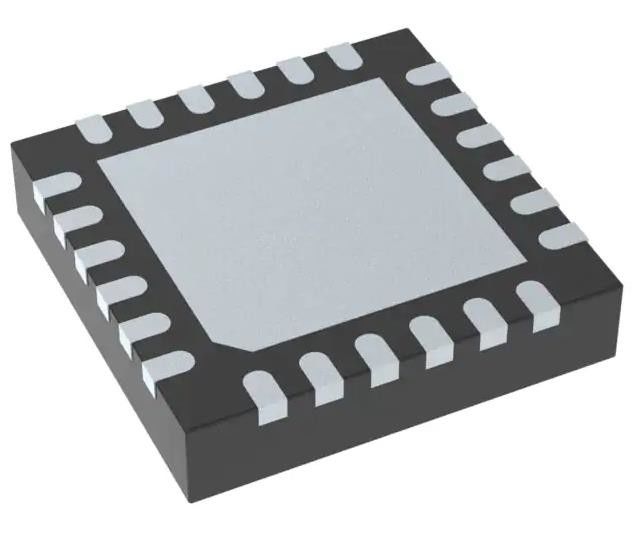

LMX2485SQ/NOPB Frequency Synthesizer (RF) IC 3GHz 1 24-WFQFN Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMX2485SQ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Frequency Synthesizer (RF) | PLL: | Yes |
|---|---|---|---|
| Input: | Clock | Output: | Clock |
| Number Of Circuits: | 1 | Ratio - Input:Output: | 3:02 |
| Differential - Input:Output: | Yes/No | Frequency - Max: | 3GHz |
| Voltage - Supply: | 2.5V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
LMX2485SQ/NOPB Frequency Synthesizer (RF) IC 3GHz 1 24-WFQFN Exposed Pad
Specifications of LMX2485SQ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Texas Instruments |
| Series | PLLatinum™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 3:02 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 3GHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 2.5V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
| Base Product Number | LMX2485 |
Features of LMX2485SQ/NOPB
* Quadruple Modulus Prescaler for Lower Divides
- RF PLL: 8/9/12/13 or 16/17/20/21
- IF PLL: 8/9 or 16/17
* Advanced Delta-Sigma Fractional Compensation
- 12-Bit or 22-Bit Selectable Fractional Modulus
- Up to 4th Order Programmable Delta-SigmaModulator
* Features for Improved Lock Time
- Fastlock / Cycle Slip Reduction With IntegratedTime-Out Counter Which Requires Only aSingle-Word Write
* Wide Operating Range
- LMX2485 RF PLL: 500 MHz to 3.0 GHz
- LMX2485E RF PLL: 50 MHz to 3.0 GHz
* Useful Features
- Digital Lock Detect Output
- Hardware and Software Power-Down Control
- On-Chip Input Frequency Doubler.
- RF Phase Detector Frequency up to 50 MHz
- 2.5 to 3.6 V Operation With Icc = 5.0 mA
Descriptions of LMX2485SQ/NOPB
• Cellular Phones and Base Stations
• Direct Digital Modulation Applications
• Satellite and Cable TV Tuners
• WLAN Standards
Environmental & Export Classifications of LMX2485SQ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991G |
| HTSUS | 8542.39.0001 |
