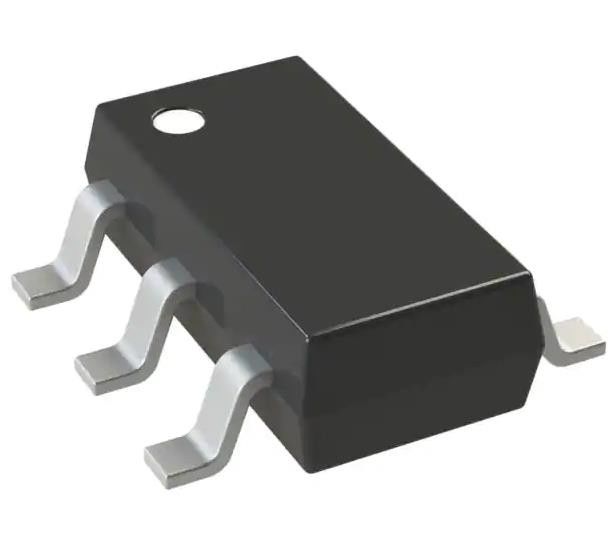

LTC4412HVIS6#TRPBF OR Controller Source Selector Switch P-Channel 2:1 TSOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC4412HVIS6#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Ratio - Input:Output: | 2:01 |
|---|---|---|---|
| Internal Switch(s): | No | Delay Time - ON: | 110 µs |
| Delay Time - OFF: | 13 µs | Current - Supply: | 18 µA |
| Voltage - Supply: | 2.5V ~ 36V | Applications: | Automotive, Handheld, USB Powered Supplies |
Product Description
LTC4412HVIS6#TRPBF OR Controller Source Selector Switch P-Channel 2:1 TSOT-23-6
Specifications of LTC4412HVIS6#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Mfr | Analog Devices Inc. |
| Series | PowerPath™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Source Selector Switch |
| FET Type | P-Channel |
| Ratio - Input:Output | 2:01 |
| Internal Switch(s) | No |
| Delay Time - ON | 110 µs |
| Delay Time - OFF | 13 µs |
| Current - Output (Max) | - |
| Current - Supply | 18 µA |
| Voltage - Supply | 2.5V ~ 36V |
| Applications | Automotive, Handheld, USB Powered Supplies |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | LTC4412 |
Features of LTC4412HVIS6#TRPBF
■ Very Low Loss Replacement for Power Supply OR’ing Diodes
■ 3V to 36V AC/DC Adapter Voltage Range
■ –40°C to 125°C Operating Temperature Range
■ Minimal External Components
■ Automatic Switching Between DC Sources
■ Simplifies Load Sharing with Multiple Batteries
■ Low Quiescent Current: 11µA
■ 2.5V to 36V Battery Voltage Range
■ Reverse Battery Protection
■ Drives Almost Any Size MOSFET for Wide Range of Current Requirements
■ MOSFET Gate Protection Clamp
■ Manual Control Input
■ Low Profile (1mm) SOT-23 (ThinSOTTM) Package
Descriptions of LTC4412HVIS6#TRPBF
■ Industrial and Automotive Applications
■ Notebook and Handheld Computers
■ USB-Powered Peripherals
■ Uninterruptable Power Supplies
■ Logic Controlled Power Switch
Environmental & Export Classifications of LTC4412HVIS6#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
