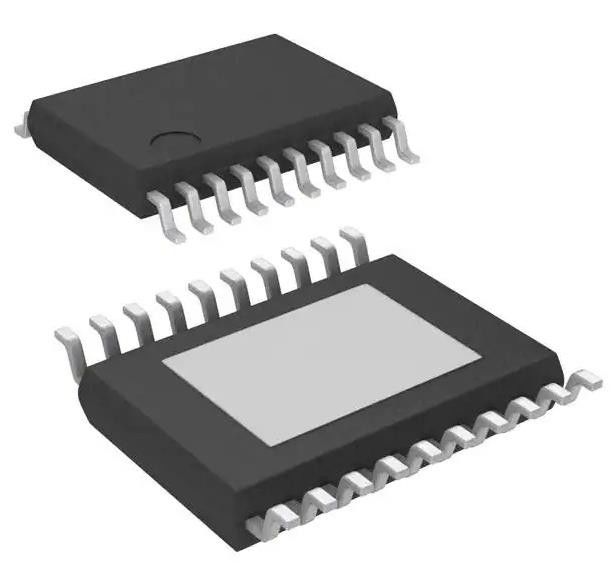

LM25117PMH/NOPB Regulator Positive Output Step-Down Controller IC 20-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM25117PMH/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Transistor Driver | Function: | Step-Down |
|---|---|---|---|
| Number Of Outputs: | 1 | Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 42V | Frequency - Switching: | Up To 750kHz |
| Synchronous Rectifier: | Yes | Clock Sync: | No |
Product Description
LM25117PMH/NOPB Regulator Positive Output Step-Down Controller IC 20-HTSSOP
Specifications of LM25117PMH/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 42V |
| Frequency - Switching | Up to 750kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | LM25117 |
Features of LM25085AMYE/NOPB
* LM25117-Q1 is Qualified for AutomotiveApplications
* AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to 125'C- Ambient Operating Temperature Range
* Emulated Peak Current Mode Control
* Programmable Current LimitHiccup Mode Over Current Protection
* Programmable Soft-start and TrackingProgrammable Line Undervoltage Lockout
* Programmable Switch-over to External BiasSupply
* Thermal Shutdown
Descriptions of LM25117PMH/NOPB
• Automotive Infotainment
• Industrial DC-DC Motor Drivers
• Automotive USB Power
• Telecom Server
Environmental & Export Classifications of LM25117PMH/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
