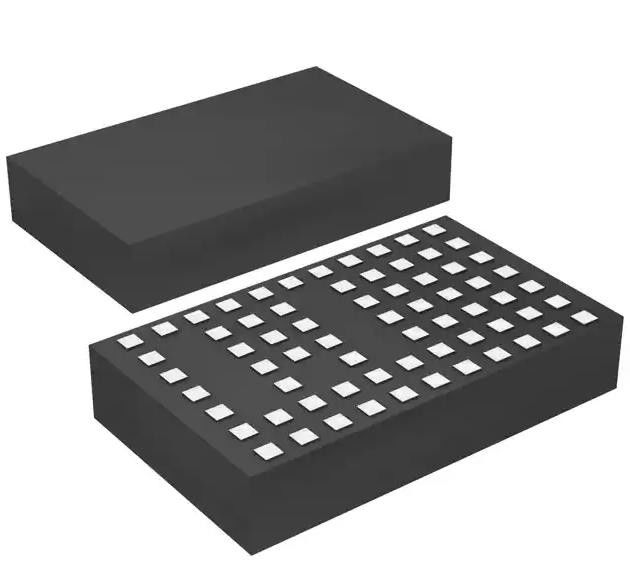

LTM4608AEV#PBF PoL Module DC Converter 1 Output 0.6 ~ 5V 8A 2.7V - 5.5V Input
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTM4608AEV#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.7V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output 1: | 0.6 ~ 5V |
| Current - Output (Max): | 8A | Applications: | ITE (Commercial) |
| Operating Temperature: | -40°C ~ 125°C | Efficiency: | 98% |
Product Description
LTM4608AEV#PBF PoL Module DC Converter 1 Output 0.6 ~ 5V 8A 2.7V - 5.5V Input
Specifications of LTM4608AEV#PBF
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Analog Devices Inc. |
| Series | µModule® |
| Package | Tray |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 8A |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 98% |
| Mounting Type | Surface Mount |
| Package / Case | 68-BLGA, Module |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) |
| Supplier Device Package | 68-LGA (15x9) |
| Base Product Number | LTM4608 |
Features of LTM4608AEV#PBF
* Complete Standalone Power Supply
* ±1.75% Total DC Output Error (–55°C to 125°C)
* 2.7V to 5.5V Input Voltage Range
* 8A DC, 10A Peak Output Current
* 0.6V Up to 5V Output
* Output Voltage Tracking and Margining
* Power Good Tracks Margining
* Multiphase Operation
* Parallel Current Sharing
* Onboard Frequency Synchronization
* Spread Spectrum Frequency Modulation
* Overcurrent/Thermal Shutdown Protection
* Current Mode Control/Fast Transient Response
* Selectable Burst Mode® Operation
* Up to 95% Efficiency
* Output Overvoltage Protection
* 9mm × 15mm × 2.82mm LGA and 9mm × 15mm × 3.42mm BGA Packages
Descriptions of LTM4608AEV#PBF
* Telecom, Networking and Industrial Equipment
* Storage Systems
* Point of Load Regulation
Environmental & Export Classifications of LTM4608AEV#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
