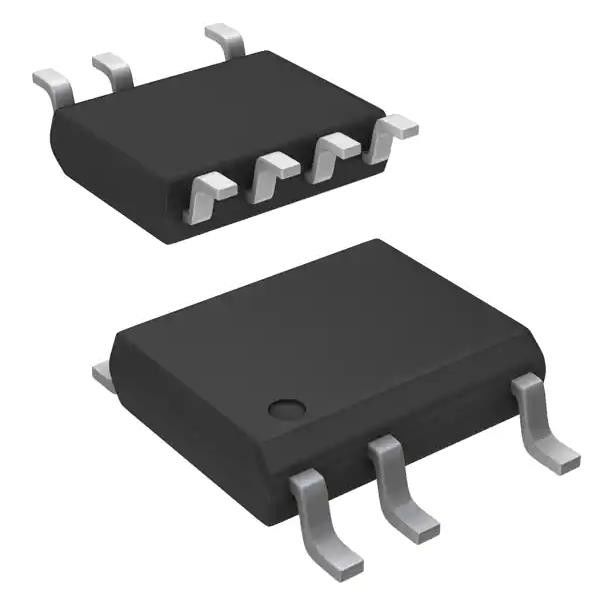

LNK305DN Converter Offline Buck Buck-Boost Flyback Topology 66kHz SO-8C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LNK305DN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Isolation: | Non-Isolated | Internal Switch(s): | Yes |
|---|---|---|---|
| Voltage - Breakdown: | 700V | Topology: | Buck, Buck-Boost, Flyback |
| Duty Cycle: | 69% | Frequency - Switching: | 66kHz |
| Fault Protection: | Current Limiting, Open Loop, Over Temperature, Short Circuit | Operating Temperature: | -40°C ~ 150°C (TJ) |
Product Description
LNK305DN Converter Offline Buck Buck-Boost Flyback Topology 66kHz SO-8C
Specifications of LNK305DN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | LinkSwitch®-TN |
| Package | Tube |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Base Product Number | LNK305 |
Features of LNK305DN
• Frequency jittering dramatically reduces EMI (~10 dB)
• Minimizes EMI filter cost
• High thermal shutdown temperature (+135 °C minimum)
Descriptions of LNK305DN
• Appliances and timers
• LED drivers and industrial controls
Environmental & Export Classifications of LNK305DN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
