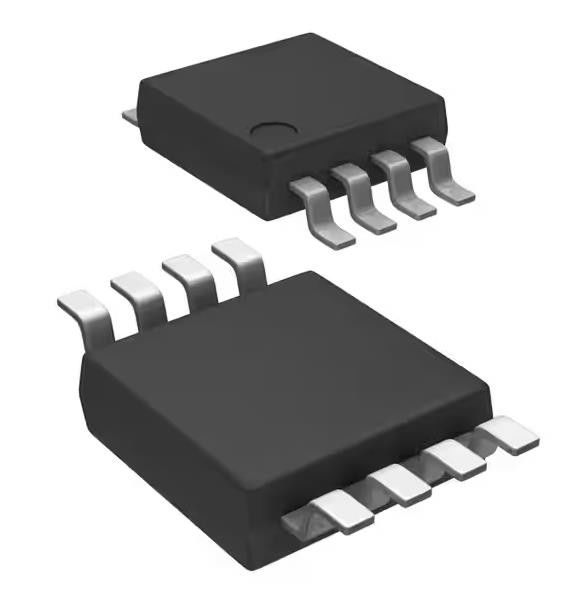

MC100EP16DTG Differential Receiver/Driver IC 8-TSSOP 3V ~ 5.5V 100EP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC100EP16DTG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Logic Type: | Differential Receiver/Driver |
|---|---|---|---|
| Supply Voltage: | 3V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package: | 8-TSSOP | Base Product Number: | 100EP16 |
Product Description
MC100EP16DTG Differential Receiver/Driver IC 8-TSSOP 3V ~ 5.5V 100EP
Specifications of MC100EP16DTG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Specialty Logic | |
| Mfr | onsemi |
| Series | 100EP |
| Package | Tube |
| Logic Type | Differential Receiver/Driver |
| Supply Voltage | 3V ~ 5.5V |
| Number of Bits | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | 100EP16 |
Features of MC100EP16DTG
• 220 ps Typical Propagation Delay
• Maximum Frequency = > 4 GHz Typical
• PECL Mode Operating Range: VCC = 3.0 V to 5.5 V with VEE = 0 V
• NECL Mode Operating Range: VCC = 0 V with VEE = −3.0 V to −5.5 V
• Open Input Default State
• Safety Clamp on Inputs
• Q Output Will Default LOW with Inputs Open or at VEE
• VBB Output
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
Descriptions of MC100EP16DTG
The EP16 is a world−class differential receiver/driver. The device is functionally equivalent to the EL16 and LVEL16 devices with higher performance capabilities. With output transition times significantly faster than the EL16 and LVEL16, the EP16 is ideally suited for interfacing with high frequency sources.
Environmental & Export Classifications of MC100EP16DTG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
