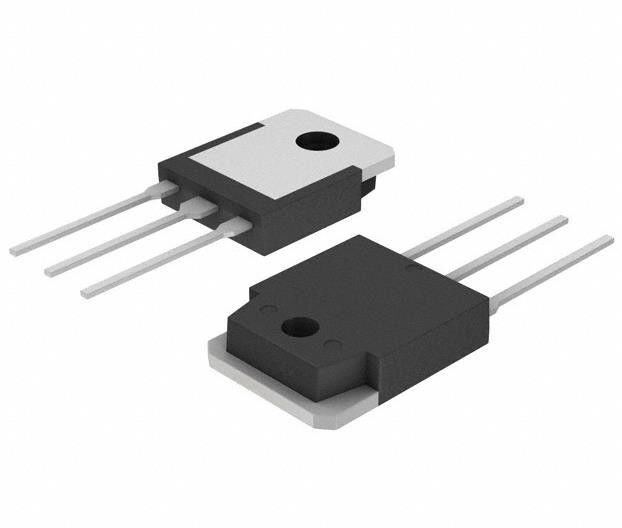

IRFP150A N-Channel 100 V 43A (Tc) 193W (Tc) Through Hole TO-3PN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IRFP150A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Rds On (Max) @ Id, Vgs: | 40mOhm @ 21.5A, 10V |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 100 V | Current - Continuous Drain (Id) @ 25°C: | 43A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 97 NC @ 10 V | Vgs (Max): | ±20V |
Product Description
IRF6713STRPBF N-Channel 25 V 22A (Ta), 95A (Tc) 2.2W (Ta), 42W (Tc)
Specifications of IRFP150A
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 43A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 21.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2270 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 193W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3PN |
| Package / Case | TO-3P-3, SC-65-3 |
| Base Product Number | IRFP150 |
Features of IRFP150A
* Avalanche Rugged Technology
* Rugged Gate Oxide Technology
* Lower Input Capacitance
* Improved Gate Charge
* Extended Safe Operating Area
* 175 Operating Temperature
* Lower Leakage Current : 10 A (Max.) @ VDS = 100V
* Lower RDS(ON) : 0.032 (Typ.)
Descriptions of IRFP150A
This datasheet contains the design specifications for product development. Specifications may change in any manner without notice.
