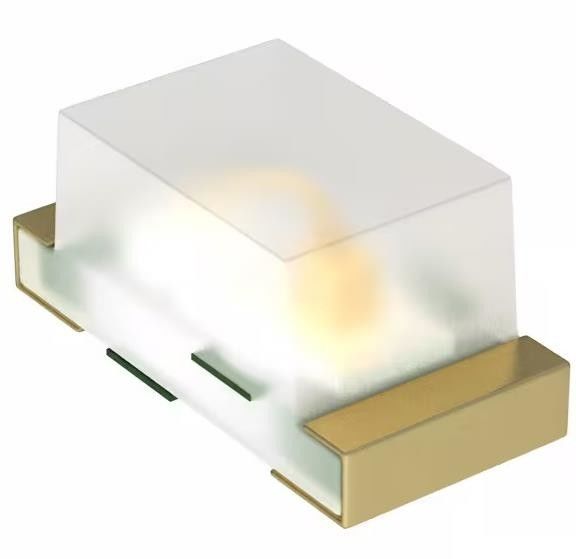

FR1111C-TR Red 626nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FR1111C-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Configuration: | Standard | Lens Color: | White |
|---|---|---|---|
| Lens Transparency: | Diffused | Millicandela Rating: | 50mcd |
| Lens Style: | Rectangle With Flat Top | Lens Size: | 1.10mm X 0.80mm |
| Voltage - Forward (Vf) (Typ): | 1.9V | Current - Test: | 20mA |
Product Description
FR1111C-TR Red 626nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
Specifications of FR1111C-TR
| TYPE | DESCRIPTION |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | Stanley Electric Co |
| Series | 1111C |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Color | Red |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 50mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Viewing Angle | 140°, 150° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm |
| Wavelength - Peak | 635nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 1608 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.80mm |
| Base Product Number | FR1111 |
Features of FR1111C-TR
* Outer Dimension 1.6 x 0.8 x 0.7mm ( L x W x H )
* Temperature range
- Storage Temperature : -40℃～100℃
- Operating Temperature : -40℃～85℃
* Lead–free soldering compatible
* RoHS compliant
Applications of FR1111C-TR
Communication Machine, Electric Household Appliances, OA/FA, Other General Applications
Environmental & Export Classifications of FR1111C-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
