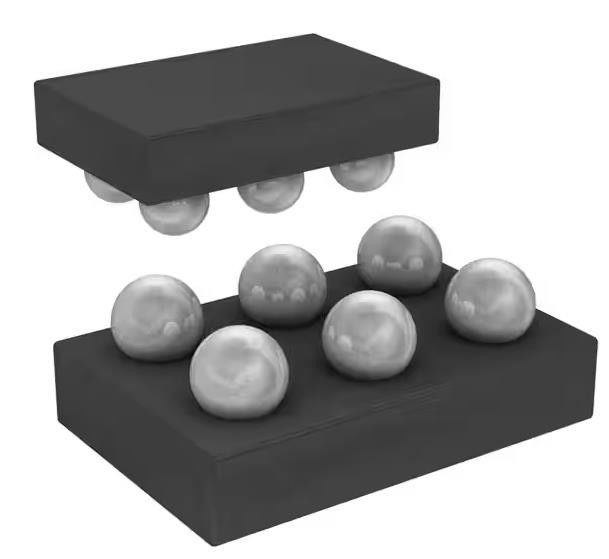

FPF2498BUCX Power Switch/Driver 1:1 P-Channel 1.7A 6-WLCSP (1.23x0.88)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FPF2498BUCX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Switch Type: | General Purpose | Number Of Outputs: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | High Side |
| Output Type: | P-Channel | Interface: | On/Off |
| Voltage - Load: | 3.5V ~ 12V | Current - Output (Max): | 1.7A |
Product Description
FPF2498BUCX Power Switch/Driver 1:1 P-Channel 1.7A 6-WLCSP (1.23x0.88)
Specifications of FPF2498BUCX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 3.5V ~ 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.7A |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.23x0.88) |
| Package / Case | 6-UFBGA, WLCSP |
| Base Product Number | FPF2498 |
Features of FPF2498BUCX
* 28 V Absolute Ratings on VIN
* 1.7 A Maximum Continuous
* Current Capability 80 m RON Typical
* Over−Voltage Protection (OVP)
* Over−Current Protection (OCP)
* Thermal Shutdown
* Under−Voltage Lockout (UVLO)
* Reverse Current Blocking (RCB)
Applications of FPF2498BUCX
• Cellular Phones, Smart Phones
• Tablets
Environmental & Export Classifications of FPF2498BUCX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
