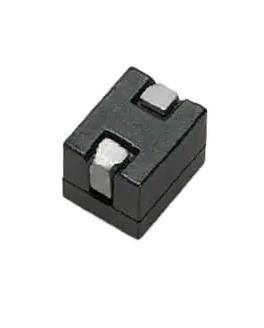

FP1008R7-R150-R 150 nH Shielded Inductor 72 A 0.12mOhm Nonstandard
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FP1008R7-R150-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Material - Core: | Ferrite | Inductance: | 150 NH |
|---|---|---|---|
| Tolerance: | ±10% | Current Rating (Amps): | 72 A |
| Current - Saturation (Isat): | 56A | Shielding: | Shielded |
| DC Resistance (DCR): | 0.12mOhm | Operating Temperature: | -40°C ~ 125°C |
Product Description
FP1008R7-R150-R 150 nH Shielded Inductor 72 A 0.12mOhm Nonstandard
Specifications of FP1008R7-R150-R
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Eaton - Electronics Division |
| Series | FP1008 |
| Package | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 72 A |
| Current - Saturation (Isat) | 56A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.425" L x 0.323" W (10.80mm x 8.20mm) |
| Height - Seated (Max) | 0.323" (8.20mm) |
Features of FP1008R7-R150-R
• High current carrying capacity
• Low core loss
• Magnetically shielded
• Inductance Range from 100 nH to 180 nH
• Current range from 60 A to 100 A
• 10.8 mm x 8.2 mm footprint surface mount package in an 8.2 mm height
• Moisture Sensitivity Level: 1
• Ferrite core material
Applications of FP1008R7-R150-R
• Multi-phase and Vcore regulators
• Voltage Regulator Modules (VRMs) and high power density VRMs
• Server and desktop
• Central processing unit (CPU)
• Graphics processing unit (GPU)
• Application specific integrated circuit (ASIC)
• Data networking and storage systems
• Graphics cards and battery power systems
• Point-of-Loadmodules (POL)
Environmental & Export Classifications of FP1008R7-R150-R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
