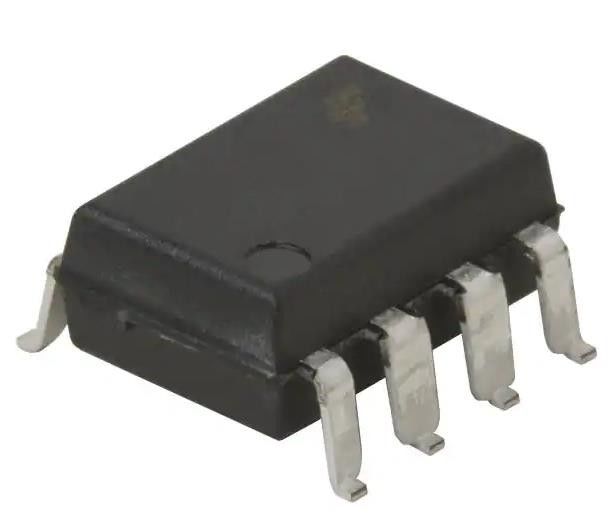

FOD3180SDV 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FOD3180SDV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 5000Vrms |
|---|---|---|---|
| Common Mode Transient Immunity (Min): | 15kV/µs | Propagation Delay TpLH / TpHL (Max): | 200ns, 200ns |
| Pulse Width Distortion (Max): | 65ns | Rise / Fall Time (Typ): | 75ns, 55ns |
| Current - Output High, Low: | 2A, 2A | Current - Peak Output: | 2.5A |
Product Description
FOD3180SDV 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
Specifications of FOD3180SDV
| TYPE | DESCRIPTION |
| Category | Isolators |
| Isolators - Gate Drivers | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 75ns, 55ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | cUL, UL, VDE |
| Base Product Number | FOD3180 |
Features of FOD3180SDV
• Guaranteed Operating Temperature Range of −40°C to +100°C
• 2 A Minimum Peak Output Current
• High Speed Response: 200 ns Max Propagation Delay over Temperature Range
• 250 kHz Maximum Switching Speed
• 30 ns Typ Pulse Width Distortion
• Wide VCC Operating Range: 10 V to 20 V
• 5000 Vrms, 1 Minute Isolation
• Under Voltage Lockout Protection (UVLO) with Hysteresis
• Minimum Creepage Distance of 7.0 mm
• Minimum Clearance Distance of 7.0 mm
• C−UL, UL and VDE* Approved
• RDS(ON) of 1.5 (Typ.) Offers Lower Power Dissipation
• 15 kV/s Minimum Common Mode Rejection
• These are Pb−Free Devices
Applications of FOD3180SDV
• Plasma Display Panel
• High Performance DC/DC Convertor
• High Performance Switch Mode Power Supply
• High Performance Uninterruptible Power Supply
• Isolated Power MOSFET Gate Drive
* Requires “V” ordering option
Environmental & Export Classifications of FOD3180SDV
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
