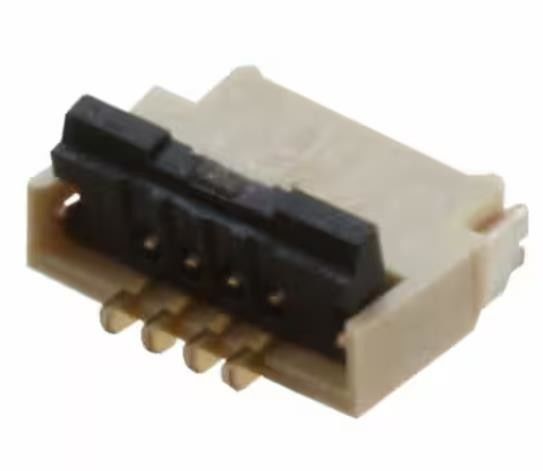

FH34S-4S-0.5SH(50) 4 Position FFC FPC Connector Contacts, Top 0.020"Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FH34S-4S-0.5SH(50) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Connector/Contact Type: | Contacts, Top | Number Of Positions: | 4 |
|---|---|---|---|
| Pitch: | 0.020" (0.50mm) | Termination: | Solder |
| Height Above Board: | 0.039" (1.00mm) | Locking Feature: | Rotary Lock, Backlock |
| Contact Material: | Phosphor Bronze | Contact Finish: | Gold |
Product Description
FH34S-4S-0.5SH(50) 4 Position FFC FPC Connector Contacts, Top 0.020"Surface Mount
Specifications of FH34S-4S-0.5SH(50)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | Hirose Electric Co Ltd |
| Series | FH34S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 4 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Rotary Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 20 |
Features of ESR10EZPF2200
1. Low-profile
With the 1.0 mm above the board and width of 3.8 mm the connectors are used in space saving applications.
2. Increased FPC/FFC retention
As compared with existing similar construction connectors:
* In horizontal direction: Approximately 2.6 times
* In vertical direction: Approximately 2 times
3. Unique Back-Flip rotating actuator
The rotating actuator opens from the back of the connector, assuring reliable electrical and mechanical connection.
4. Easy FPC insertion and reliable electrical connection
Proven Flip Lock actuator allows easy insertion of FPC and provides a tactile sensation when fully closed, confirming complete electrical and mechanical connection.
Applications of ESR10EZPF2200
◆Handling before mounting on PCB
Insertion of the FPC/FFC or operation of the actuator prior to mounting on the PCB is not recommended.
◆PC board warpage
Minimize the warpage as much as possible. The connector are straight within 0.1 mm max. Make sure that the mounting area flatness can accept the connector terminals without causing any failure of the solder joints.
◆Forces on the board
◆When braking the large PC board into individual boards exercise care not to damage the installed connectors.
◆When attaching the boards or other components with the screws
make sure that any stresses will not cause board deflections affecting the mounting areas of the connector.
Environmental & Export Classifications of FH34S-4S-0.5SH(50)
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
