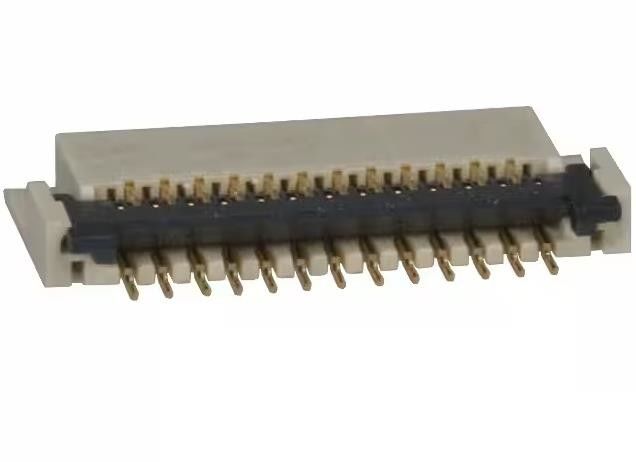

FH23-25S-0.3SHW 25 Position FPC Connector Contacts Bottom 0.012" Right Angle
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FH23-25S-0.3SHW(05) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Flat Flex Type: | FPC | Connector/Contact Type: | Contacts, Bottom |
|---|---|---|---|
| Number Of Positions: | 25 | Pitch: | 0.012" (0.30mm) |
| FFC, FCB Thickness: | 0.20mm | Height Above Board: | 0.049" (1.25mm) |
| Voltage Rating: | 30V | Operating Temperature: | -55°C ~ 85°C |
Product Description
FH23-25S-0.3SHW 25 Position FPC Connector Contacts Bottom 0.012" Right Angle
Specifications of FH23-25S-0.3SHW(05)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | Hirose Electric Co Ltd |
| Series | FH23 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 25 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.049" (1.25mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.3A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 10 |
| Base Product Number | FH23 |
Environmental & Export Classifications of FH23-25S-0.3SHW(05)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
