ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ESD7181MUT5G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Bidirectional Channels: | 1 | Voltage - Reverse Standoff (Typ): | 18.5V (Max) |
|---|---|---|---|
| Voltage - Breakdown (Min): | 20.5V | Voltage - Clamping (Max) @ Ipp: | 35V (Typ) |
| Current - Peak Pulse (10/1000µs): | 1A (8/20µs) | Power Line Protection: | No |
| Applications: | RF Antenna | Capacitance @ Frequency: | 0.3pF @ 1MHz |
Product Description

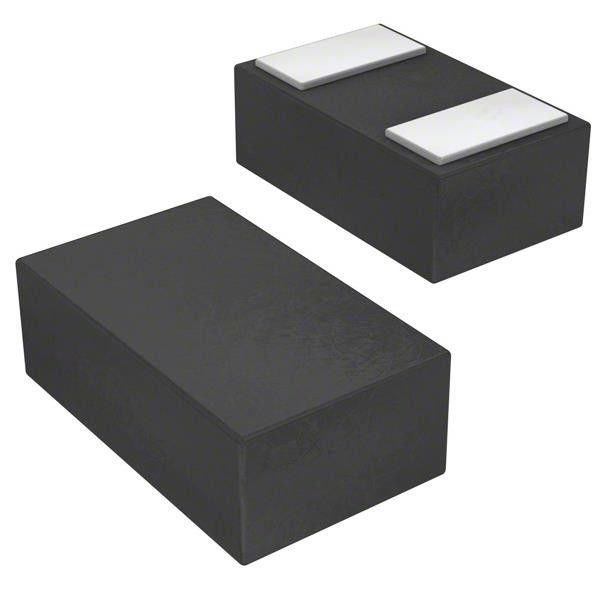

ESD7181MUT5G 35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN
Specifications of ESD7181MUT5G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 18.5V (Max) |
| Voltage - Breakdown (Min) | 20.5V |
| Voltage - Clamping (Max) @ Ipp | 35V (Typ) |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | RF Antenna |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-X3DFN (0.6x0.3) (0201) |
| Base Product Number | ESD7181 |
Features of ESD7181MUT5G
• Low Capacitance 0.3 pF (Typical)
• Low Clamping Voltage
• Small Body Outline Dimensions: (0.62 x 0.32 mm) − 0201
• Low Body Height: 0.3 mm
• Working Voltage: ±18.5 V
• Low Leakage < 1 nA (Typical)
• Low Insertion Loss
• Low Dynamic Resistance: < 1
• IEC61000−4−2 Level 4 ESD Protection
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of ESD7181MUT5G
• RF Signal ESD Protection
• Wireless Charger
• RF Switching, PA, and Antenna ESD Protection
• Near Field Communications
Environmental & Export Classifications of ESD7181MUT5G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
