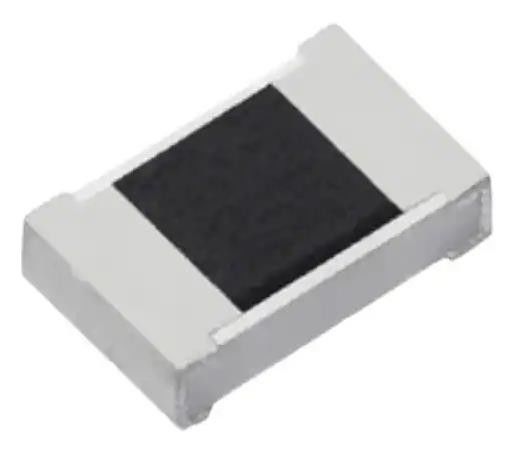

ERJ-3EKF6200V 620 Ohms ±1% 0.1W 1/10W Chip Resistor 0603 Automotive AEC-Q200
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ERJ-3EKF6200V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Automotive AEC-Q200 | Resistance: | 620 Ohms |
|---|---|---|---|
| Tolerance: | ±1% | Power (Watts): | 0.1W, 1/10W |
| Composition: | Thick Film | Temperature Coefficient: | ±100ppm/°C |
| Operating Temperature: | -55°C ~ 155°C | Supplier Device Package: | 603 |
Product Description
ERJ-3EKF6200V 620 Ohms ±1% 0.1W 1/10W Chip Resistor 0603 Automotive AEC-Q200
Specifications of ERJ-3EKF6200V
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Panasonic Electronic Components |
| Series | ERJ-3EK |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Resistance | 620 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | ERJ-3EKF6 |
Features of ERJ-3EKF6200V
● Small size and lightweight
● High reliability : Metal glaze thick film resistive element and three layers of electrodes
● Compatible with placement machines : Taping packaging available
● Suitable for both reflow and flow soldering
● Low resistance tolerance : ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T series :±1 ％ ERJ1R, 2R, 3R, 6R series :±0.5 ％
● Reference standard : IEC 60115-8,JIS C 5201-8,JEITA RC-2134C
● AEC-Q200 compliant (except ERJ1R, ERJXG, ERJ1GN)
● RoHS compliant
Applications of ERJ-3EKF6200V
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival at your company, provided that they remain packed as they were when delivered and stored at a temperature of 5 °C to 35 °C and a relative humidity of 45 % to 85 %.
Environmental & Export Classifications of ERJ-3EKF6200V
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
