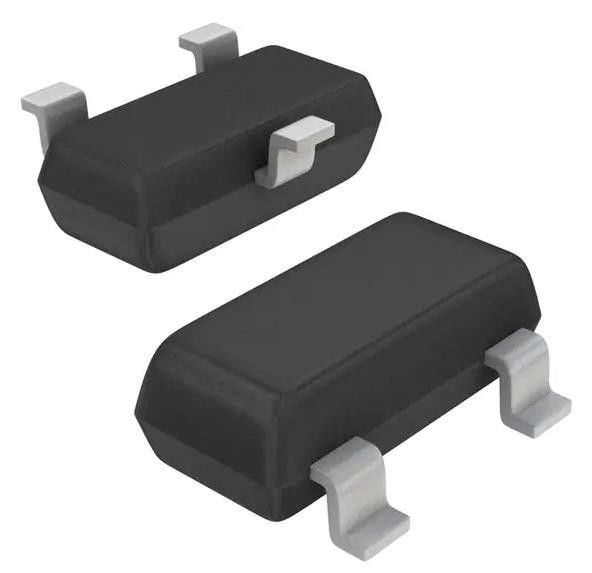

DTA144EE-TL Pre-Biased 50 V 30 mA 250 MHz 150 mW Surface Mount EMT3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DTA144EE-TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP - Pre-Biased | Current - Collector (Ic) (Max): | 30 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50V | Resistor - Base (R1): | 47 KOhms |
| Resistor - Emitter Base (R2): | 47 KOhms | DC Current Gain (hFE) (Min) @ Ic, Vce: | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 500µA, 10mA | Current - Collector Cutoff (Max): | 500nA |
Product Description
DTA144EE-TL Pre-Biased 50 V 30 mA 250 MHz 150 mW Surface Mount EMT3
Specifications of DTA144EE-TL
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 47 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250 MHz |
| Power - Max | 150 mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | EMT3 |
| Base Product Number | DTA144 |
Features of DTA144EE-TL
1) Built-In Biasing Resistors, R1 = R2 = 47kΩ
2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) .
3) Only the on/off conditions need to be set for operation, making the circuit design easy.
4) Complementary NPN Types: DTC144E series
Applications of DTA144EE-TL
INVERTER, INTERFACE, DRIVER
Environmental & Export Classifications of DTA144EE-TL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
