DMN2009LSS-13 N-Channel 20 V 12A (Ta) 2W (Ta) Surface Mount 8-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DMN2009LSS-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Drain To Source Voltage (Vdss): | 20V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 12A (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 8mOhm @ 12A, 10V | Vgs(th) (Max) @ Id: | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 58.3 NC @ 10 V | Vgs (Max): | ±12V |
Product Description

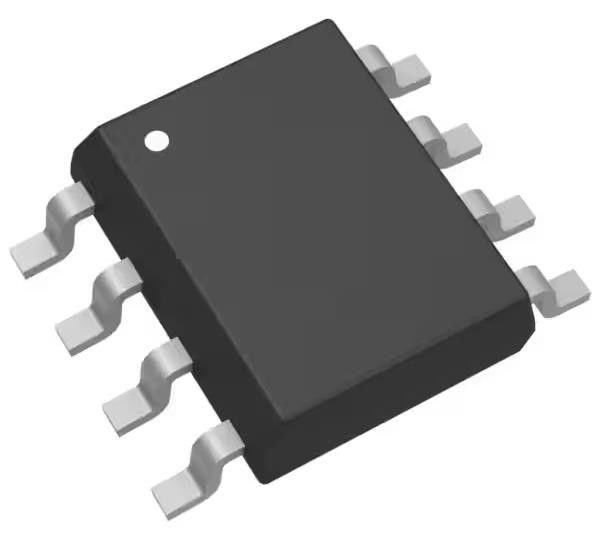

DMN2009LSS-13 N-Channel 20 V 12A (Ta) 2W (Ta) Surface Mount 8-SO
Specifications of DMN2009LSS-13
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 58.3 nC @ 10 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 2555 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | DMN2009 |
Features of DMN2009LSS-13
* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability
Applications of DMN2009LSS-13
* Backlighting
* Power Management Functions
* DC-DC Converters
Environmental & Export Classifications of DMN2009LSS-13
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
