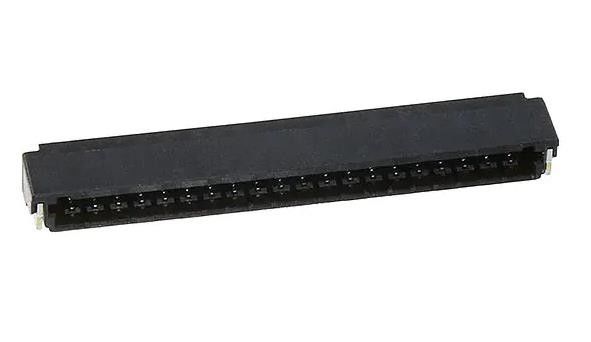

DF52-20S-0.8H(21) 20 Position Socket Connector 0.031" (0.80mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DF52-20S-0.8H(21) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Positions: | 20 | Pitch - Mating: | 0.031" (0.80mm) |
|---|---|---|---|
| Number Of Rows: | 1 | Termination: | Solder |
| Fastening Type: | Detent Lock | Contact Finish - Mating: | Tin |
Product Description
DF52-20S-0.8H(21) 20 Position Socket Connector 0.031" (0.80mm)
Specifications of DF52-20S-0.8H(21)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Receptacles, Female Sockets | |
| Mfr | Hirose Electric Co Ltd |
| Series | DF52 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Socket |
| Contact Type | Non-Gendered |
| Style | Board to Cable/Wire |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.069" (1.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Glow Wire Compliant, Solder Retention |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 100V |
| Applications | - |
| Insulation Material | Polyamide (PA), Nylon, Halogen Free |
| Contact Shape | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | DF52 |
Features of DF52-20S-0.8H(21)
1. Small-sized connector
0.8mm Pitch, 1.75mm Height, 4.1mm Depth. Suitable for small-sized applications.
2. Small but robust structure
The housing is designed with thick walls while remaining small. This produces a strong, robust connector that resists damage.
3. Suitable for high current applications.
The maximum current of 2.5A (using 2-pos 28 AWG wire) is achieved by using highly conductive material and appropriate contact force.
4. BOX shaped contact prevents deformation.
The BOX shaped crimp contact prevents deformation during assembly and contributes to the overall stability and robustness.
5. Visual check insures fully mated Plug and Receptacle
The housing is designed with an open side that allows for visual inspection to insure the connectors are fully mated preventing accidental disconnect. 6. Glow Wire compliance (Compliant with IEC 60695-2-11)
7. Halogen-free
Chlorine and bromine levels are below standard values of IEC 61249-2-21.
Br : less than 900ppm, Cl : less than 900ppm,
Br + Cl : less than 1,500ppm.
Environmental & Export Classifications of DF52-20S-0.8H(21)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
