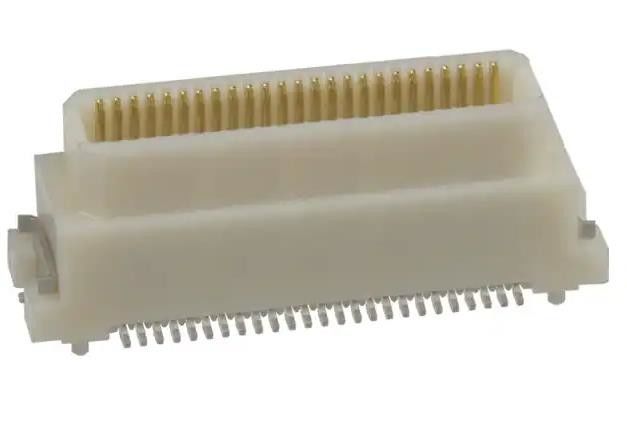

DF17(4.0)-50DP-0.5V(57) 50 Position Connector Header Outer Shroud Contacts
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DF17(4.0)-50DP-0.5V(57) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Board Guide, Solder Retention | Connector Type: | Header, Outer Shroud Contacts |
|---|---|---|---|
| Number Of Positions: | 50 | Pitch: | 0.020" (0.50mm) |
| Number Of Rows: | 2 | Contact Finish: | Gold |
Product Description
DF17(4.0)-50DP-0.5V(57) 50 Position Connector Header Outer Shroud Contacts
Specifications of DF17(4.0)-50DP-0.5V(57)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Arrays, Edge Type, Mezzanine (Board to Board) | |
| Mfr | Hirose Electric Co Ltd |
| Series | DF17 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Header, Outer Shroud Contacts |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 7mm, 8mm |
| Height Above Board | 0.248" (6.30mm) |
| Base Product Number | DF17 |
Features of DF17(4.0)-50DP-0.5V(57)
1. Withstands Drop Impact or Shock
・All 4 sides covered by box design
・Bellows contacts strong against vibration
・Convex on receptacle increases strength enhance shock-proof, pinch-proof and scoop-proof performance. (Fig.1)(Fig.2)
2. With Metal Fitting available
In order to grade up the strength against the mechanical stress, the metal fitting specification is also available.
3. Wide Variety of No. of Positions
The connectors are lined up per 10 contacts from 20 to 80 pos. to take countermeasures for multi-signalization.
4. Stacking Height 4 to 8mm
The stacking height can be selected (per milimeter) between 4mm and 8mm in combination of the receptacle with the header.
Applications of DF17(4.0)-50DP-0.5V(57)
Mobile phones, LCD, miniature equipment and so on
Environmental & Export Classifications of DF17(4.0)-50DP-0.5V(57)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
