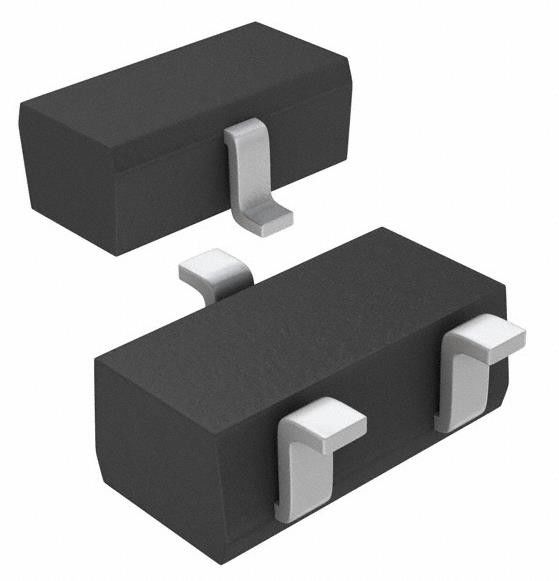

DAN217T146 Diode Array 1 Pair Series Connection 80 V 100mA Surface Mount TO-236-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAN217T146 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Series Connection | Voltage - DC Reverse (Vr) (Max): | 80 V |
|---|---|---|---|
| Current - Average Rectified (Io) (per Diode): | 100mA | Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 100 MA |
| Speed: | Small Signal =< 200mA (Io), Any Speed | Reverse Recovery Time (trr): | 4 Ns |
Product Description
DAN217T146 Diode Array 1 Pair Series Connection 80 V 100mA Surface Mount TO-236-3
Specifications of DAN217T146
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 70 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SMD3 |
| Base Product Number | DAN217 |
Environmental & Export Classifications of DAN217T146
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
