CY8C20636A-24LTXIT Clock VC1 4 VC1 source IMO 24 MHz FClock 6 MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CY8C20636A-24LTXIT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Capacitive Sensing | Core Processor: | M8C |
|---|---|---|---|
| Program Memory Type: | FLASH (8kB) | Controller Series: | CY8C20xx6A |
| RAM Size: | 1K X 8 | Interface: | I²C, SPI |
| Number Of I/O: | 36 | Operating Temperature: | -40°C ~ 85°C |
Product Description
CY8C20636A-24LTXIT Clock VC1 4 VC1 source IMO 24 MHz FClock 6 MHz
Specifications of CY8C20636A-24LTXIT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Application Specific Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | CapSense® Controllers |
| Package | Tape & Reel (TR) |
| Applications | Capacitive Sensing |
| Core Processor | M8C |
| Program Memory Type | FLASH (8kB) |
| Controller Series | CY8C20xx6A |
| RAM Size | 1K x 8 |
| Interface | I²C, SPI |
| Number of I/O | 36 |
| Voltage - Supply | 1.71V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

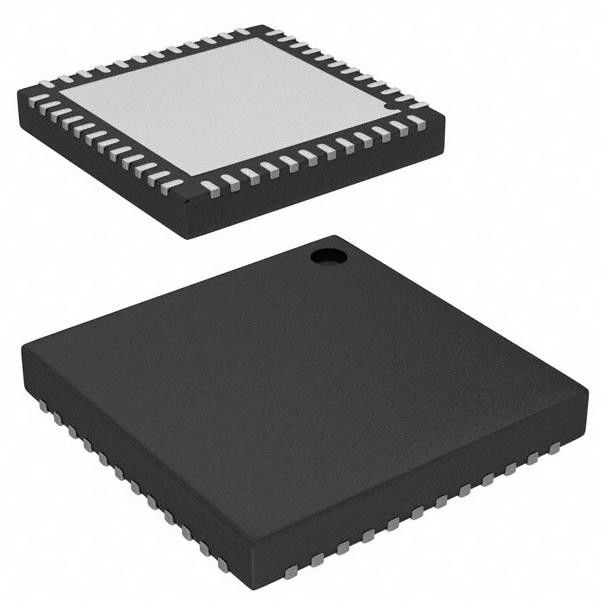

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Base Product Number | CY8C20636 |
Features of CY8C20636A-24LTXIT
* Haptics effects based on industry proven Immersion TouchSense 2000 Haptics Effect Library
* Selection of up to 14 different effects
* Selection of two actuator models
* Improved user accuracy of CapSense® buttons due to tactile feedback
* Up to 3.3-V operation
* Simple API to play haptic effects
Applications of CY8C20636A-24LTXIT
The basic operation of the TS2000 User Module is to give the actuator drive circuit a specific PWM signal that is periodically updated. By giving different sequences of PWM values, the actuator produces different effects.
Environmental & Export Classifications of CY8C20636A-24LTXIT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
