CX8045GA 4 MHz ±50ppm Crystal Units 12pF 300 Ohms 2-SMD No Lead
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CX8045GA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 4 MHz | Frequency Stability: | ±100ppm |
|---|---|---|---|
| Frequency Tolerance: | ±50ppm | Load Capacitance: | 12pF |
| ESR (Equivalent Series Resistance): | 300 Ohms | Operating Mode: | Fundamental |
| Operating Temperature: | -40°C ~ 125°C | Ratings: | AEC-Q200 |
| High Light: | CX8045GA,CX8045GA Crystal Units |
||
Product Description

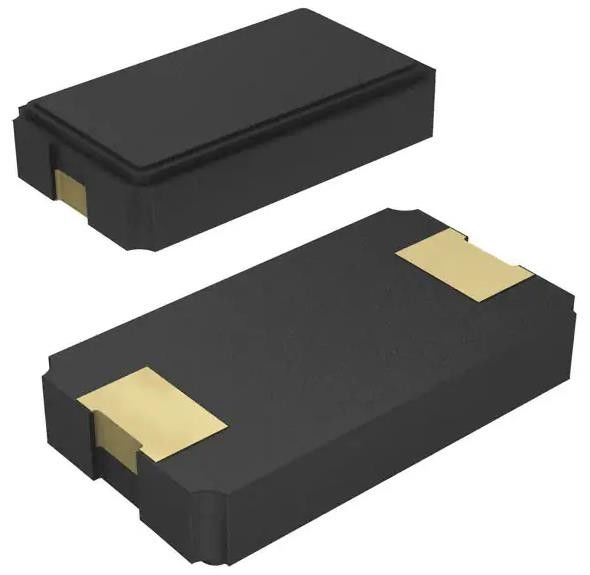

CX8045GA 4 MHz ±50ppm Crystal 12pF 300 Ohms 2-SMD, No Lead
Specifications of CX8045GA
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Crystals | |
| Mfr | KYOCERA AVX |
| Series | CX8045GA, Kyocera |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | MHz Crystal |
| Frequency | 4 MHz |
| Frequency Stability | ±100ppm |
| Frequency Tolerance | ±50ppm |
| Load Capacitance | 12pF |
| ESR (Equivalent Series Resistance) | 300 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.315" L x 0.177" W (8.00mm x 4.50mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Environmental & Export Classifications of CX8045GA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.60.0030 |
