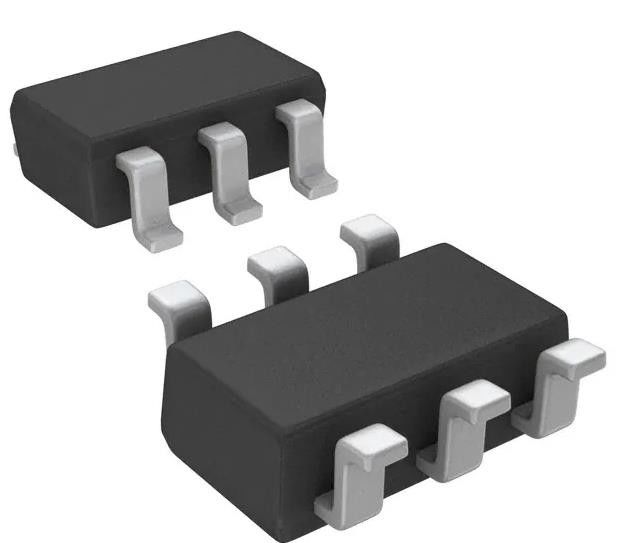

CPH6223-TL-E Bipolar Transistor NPN 50 V 3 A 380MHz 1.3 W Surface Mount 6-CPH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CPH6223-TL-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | NPN | Current - Collector (Ic) (Max): | 0.125 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50V | Vce Saturation (Max) @ Ib, Ic: | 240mV @ 100mA, 2A |
| Current - Collector Cutoff (Max): | 1µA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 100mA, 2V |
| Power - Max: | 1.3 W | Frequency - Transition: | 380MHz |
| High Light: | CPH6223-TL-E,CPH6223-TL-E NPN Bipolar Transistor |
||
Product Description
CPH6223-TL-E Bipolar Transistor NPN 50 V 3 A 380MHz 1.3 W Surface Mount 6-CPH
Specifications of CPH6223-TL-E
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 0.125 |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 240mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Power - Max | 1.3 W |
| Frequency - Transition | 380MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-CPH |
| Base Product Number | CPH6223 |
Features of CPH6223-TL-E
* Adoption of MBIT Process
* Large Current Capacity
* Low Collector−to−Emitter Saturation Voltage
* High−Speed Switching
* Ultrasmall Package Facilitates Miniaturization in End Products (Mounting Height: 0.9 mm)
* High Allowable Power Dissipation
* These are Pb−Free Devices
Applications of CPH6223-TL-E
* DC−DC Converters, Relay Drivers, Lamp Drivers, Motor Drivers,Strobe
Environmental & Export Classifications of CPH6223-TL-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
