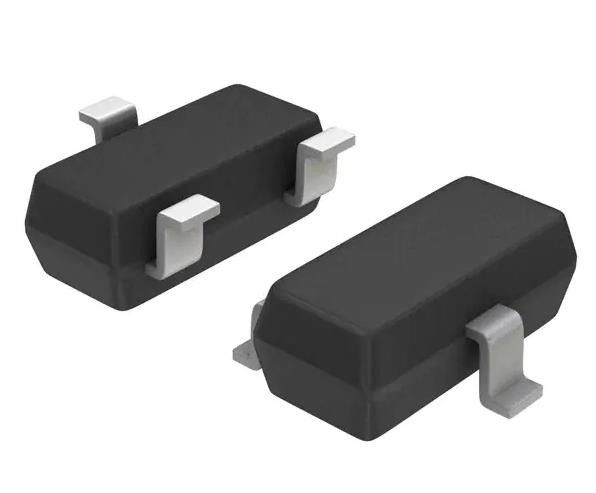

CPH3362-TL-W P-Channel MOSFET IC 100 V 700mA (Ta) 1W (Ta) Surface Mount 3-CPH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CPH3362-TL-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 100 V | Current - Continuous Drain (Id) @ 25°C: | 700mA (Ta) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 4V, 10V | Rds On (Max) @ Id, Vgs: | 1.7Ohm @ 700mA, 10V |
| Vgs(th) (Max) @ Id: | 2.6V @ 1mA | Gate Charge (Qg) (Max) @ Vgs: | 3.7 NC @ 10 V |
| Vgs (Max): | ±20V | Input Capacitance (Ciss) (Max) @ Vds: | 142 PF @ 20 V |
| High Light: | CPH3362-TL-W,CPH3362-TL-W P-Channel MOSFET IC |
||
Product Description
CPH3362-TL-W P-Channel 100 V 700mA (Ta) 1W (Ta) Surface Mount 3-CPH
Specifications of CPH3362-TL-W
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 700mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 1.7Ohm @ 700mA, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.7 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 142 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-CPH |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | CPH3362 |
Features of CPH3362-TL-W
* On-resistance RDS(on)1=1.3Ω (typ)
* Halogen free compliance
* 4V drive
Environmental & Export Classifications of CPH3362-TL-W
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
