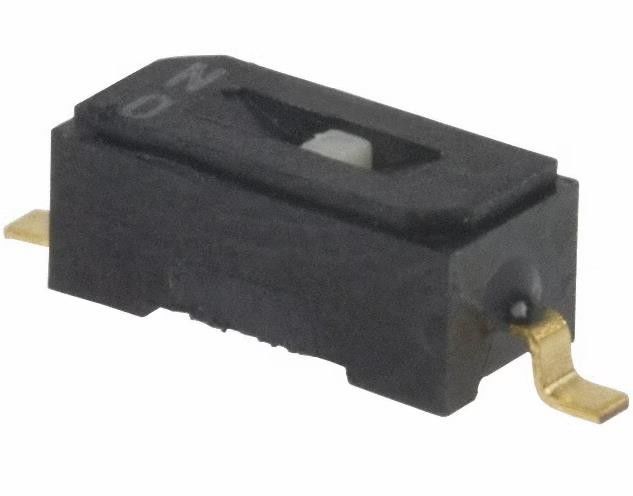

CHS-01TB DIP Switches SPST 1 Position Surface Mount Slide Actuator 100mA 6VDC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CHS-01TB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Positions: | 1 | Current Rating (Amps): | 100mA |
|---|---|---|---|
| Voltage Rating: | 6VDC | Actuator Type: | Slide (Standard) |
| Actuator Level: | Flush, Recessed | Contact Material: | Copper Alloy |
| Contact Finish: | Gold | Height Above Board: | 0.098" (2.50mm) |
| High Light: | CHS-01TB,CHS-01TB DIP Switches |
||
Product Description
CHS-01TB Dip Switch SPST 1 Position Surface Mount Slide Actuator 100mA 6VDC
Specifications of CHS-01TB
| TYPE | DESCRIPTION |
| Category | Switches |
| DIP Switches | |
| Mfr | Nidec Components Corporation |
| Series | CHS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Circuit | SPST |
| Number of Positions | 1 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 6VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.098" (2.50mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.098" (2.50mm) |
| Mechanical Life | - |
| Electrical Life | 2,000 Cycles |
| Base Product Number | CHS-01T |
Features of CHS-01TB
● RoHS compliant
● Meets EIAJ SOP standard outline dimensions (B type)
● Low profile design of 2.5 mm
● 12 types of 1, 2, 4, 6, 8 or 10 bit with either gull wing or J-hook available
● Excellent contact stability by twin Gold-plated contact
● Resin material is UL Recognized 94V-0
Environmental & Export Classifications of CHS-01TB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
