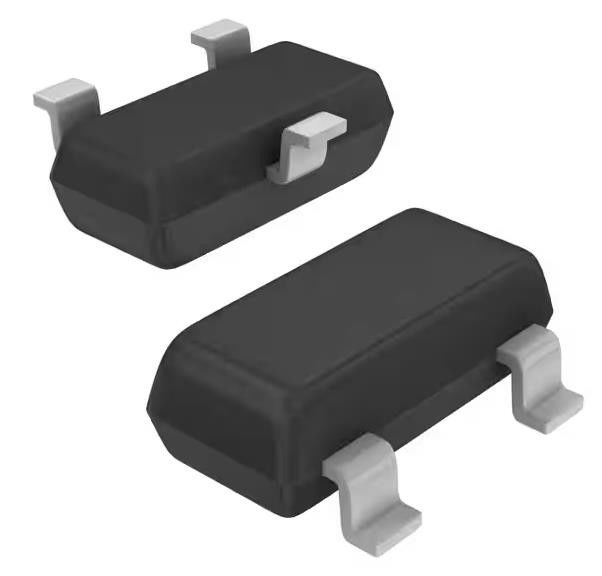

BC858ALT1G Bipolar BJT Transistor PNP 30 V 100 mA 100MHz 300 mW SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BC858ALT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 100 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 30 V | Vce Saturation (Max) @ Ib, Ic: | 650mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max): | 15nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 125 @ 2mA, 5V |
| Power - Max: | 300 MW | Frequency - Transition: | 100MHz |
| High Light: | BC858ALT1G,BC858ALT1G Bipolar BJT Transistor |
||
Product Description
BC858ALT1G Bipolar (BJT) Transistor PNP 30 V 100 mA 100MHz 300 mW SOT-23-3
Specifications of BC858ALT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 650mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 125 @ 2mA, 5V |
| Power - Max | 300 mW |
| Frequency - Transition | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BC858 |
Features of BC858ALT1G
• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of BC858ALT1G
xx = Device Code
xx = (Refer to page 6)
M = Date Code*
= Pb−Free Package
Environmental & Export Classifications of BC858ALT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
