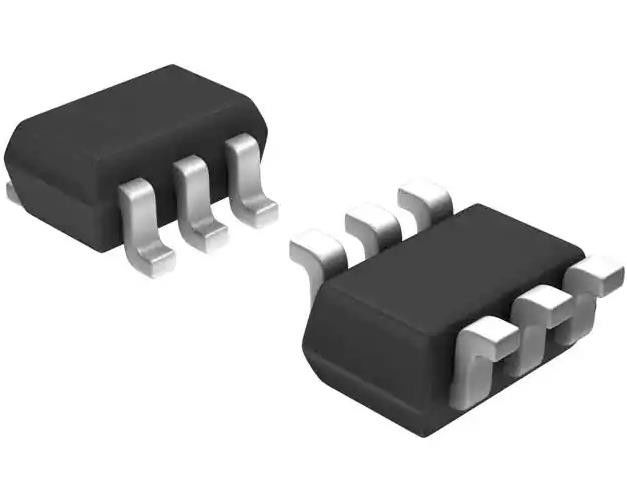

BC847BDW1T1G Bipolar BJT Transistor Array 2 NPN (Dual) 45V 100mA 100MHz 380mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BC847BDW1T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | 2 NPN (Dual) | Current - Collector (Ic) (Max): | 100mA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 45V | Vce Saturation (Max) @ Ib, Ic: | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max): | 15nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 2mA, 5V |
| Power - Max: | 380mW | Frequency - Transition: | 100MHz |
| High Light: | BC847BDW1T1G,BC847BDW1T1G Bipolar BJT Transistor |
||
Product Description
BC847BDW1T1G Bipolar (BJT) Transistor Array 2 NPN (Dual) 45V 100mA 100MHz 380mW
Specifications of BC847BDW1T1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar Transistor Arrays | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Power - Max | 380mW |
| Frequency - Transition | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
| Base Product Number | BC847 |
Features of BC847BDW1T1G
• S and NSV Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant*
Applications of BC847BDW1T1G
These transistors are designed for general purpose amplifier applications. They are housed in the SOT−363/SC−88 which is designed for low power surface mount applications.
Environmental & Export Classifications of BC847BDW1T1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
