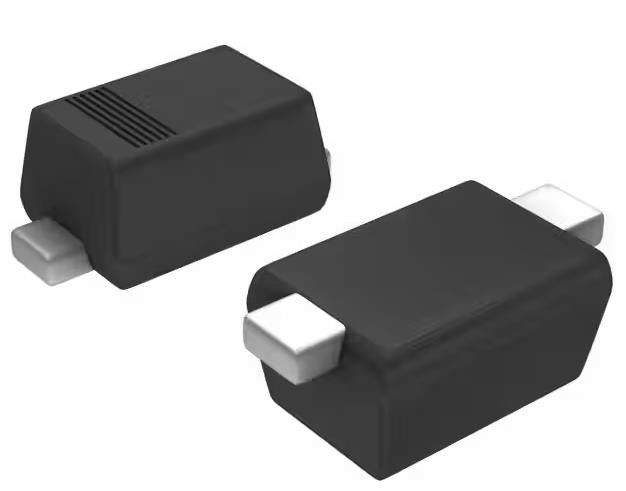

BAP65-02,115 RF Diode PIN - Single 30V 100 mA 715 mW SOD-523
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BAP65-02,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Type: | PIN - Single | Voltage - Peak Reverse (Max): | 30V |
|---|---|---|---|
| Current - Max: | 100 MA | Capacitance @ Vr, F: | 0.375pF @ 20V, 1MHz |
| Resistance @ If, F: | 350mOhm @ 100mA, 100MHz | Power Dissipation (Max): | 715 MW |
| Operating Temperature: | -65°C ~ 150°C (TJ) | Package / Case: | SC-79, SOD-523 |
| High Light: | BAP65-02 115,BAP65-02 115 RF Diode |
||
Product Description
BAP65-02,115 RF Diode PIN - Single 30V 100 mA 715 mW SOD-523
Specifications of BAP65-02,115
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| RF Diodes | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) | 30V |
| Current - Max | 100 mA |
| Capacitance @ Vr, F | 0.375pF @ 20V, 1MHz |
| Resistance @ If, F | 350mOhm @ 100mA, 100MHz |
| Power Dissipation (Max) | 715 mW |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | BAP65 |
Features of BAP65-02,115
• High voltage, current controlled
• RF resistor for RF switches
• Low diode capacitance
• Low diode forward resistance
• Very low series inductance
• AEC-Q101 qualified
Applications of BAP65-02,115
• RF attenuators and switches
• Bandswitch for TV tuners
• Series diode for mobile communication transmit/receive switch
Environmental & Export Classifications of BAP65-02,115
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
