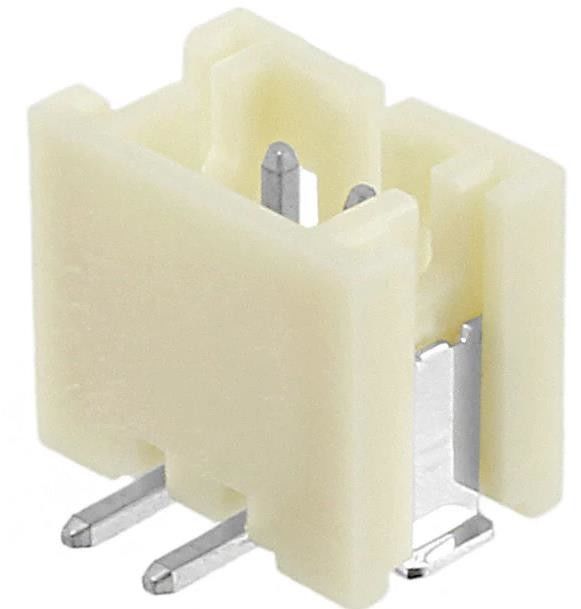

B2B-PH-SM4-TB(LF)(SN) Connector Header Surface Mount 2 Position 0.079" (2.00mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | B2B-PH-SM4-TB(LF)(SN) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Contact Type: | Male Pin | Number Of Positions: | 2 |
|---|---|---|---|
| Pitch - Mating: | 0.079" (2.00mm) | Number Of Rows: | 1 |
| Number Of Positions Loaded: | All | Style: | Board To Cable/Wire |
| Shrouding: | Shrouded - 4 Wall | Fastening Type: | Detent Lock |
| High Light: | B2B-PH-SM4-TB(LF)(SN),2 position Connector Header |
||
Product Description
B2B-PH-SM4-TB(LF)(SN) Connector Header Surface Mount 2 position 0.079" (2.00mm)
Specifications of B2B-PH-SM4-TB(LF)(SN)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | JST Sales America Inc. |
| Series | PH |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.130" (3.30mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.260" (6.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100V |
| Mated Stacking Heights | 8.6mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | B2B-PH-S |
Features of B2B-PH-SM4-TB(LF)(SN)
• Current rating: 2 A AC/DC (AWG #24)
• Voltage rating: 100 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/ minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6 mm
* In using the products, refer to "Handling Precautions for Terminals and Connectors" described on our website (Technical documents of Product information page).
* RoHS2 compliance
* Dimensional unit: mm
* Contact JST for details.
Applications of B2B-PH-SM4-TB(LF)(SN)
This is a thin, low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width.
Environmental & Export Classifications of B2B-PH-SM4-TB(LF)(SN)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
