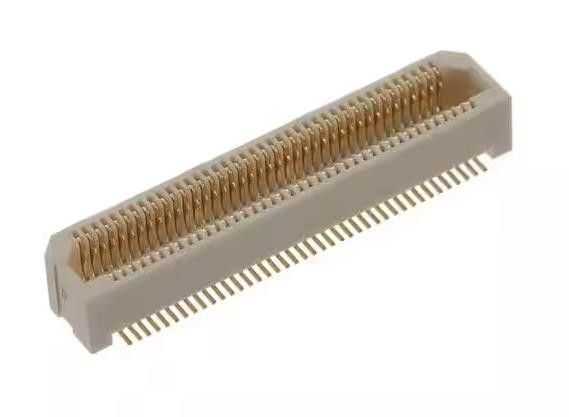

AXK5S80247YG 80 Position Connector Socket Center Strip Contacts Surface Mount Gold
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AXK5S80247YG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Connector Type: | Socket, Center Strip Contacts | Number Of Positions: | 80 |
|---|---|---|---|
| Pitch: | 0.020" (0.50mm) | Number Of Rows: | 2 |
| Mounting Type: | Surface Mount | Mated Stacking Heights: | 4.5mm, 5.5mm, 6.5mm |
| Height Above Board: | 0.140" (3.55mm) | Contact Finish: | Gold |
| High Light: | AXK5S80247YG,80 Position Connector Socket |
||
Product Description
AXK5S80247YG 80 Position Connector Socket Center Strip Contacts Surface Mount Gold
Specifications of AXK5S80247YG
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Arrays, Edge Type, Mezzanine (Board to Board) | |
| Mfr | Panasonic Electric Works |
| Series | P5KS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Connector Type | Socket, Center Strip Contacts |
| Number of Positions | 80 |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 4.5mm, 5.5mm, 6.5mm |
| Height Above Board | 0.140" (3.55mm) |
| Base Product Number | AXK5S80247 |
Features of AXK5S80247YG
* Wide range of mated heights (3.0 to 9.0 mm) is available.
* “TOUGH CONTACT” construction provides high contact reliability design resistant to various environmental conditions.
* The effective mating length is long and there is enough space for mating.
* Models that support an ambient temperature of 105°C are also available. (P5KS)
Applications of AXK5S80247YG
* Mobile devices and industrial equipment
Environmental & Export Classifications of AXK5S80247YG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
