AMC1200STDUBRQ1 Isolation Amplifier IC 1 Circuit Differential 8-SOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AMC1200STDUBRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Isolation | Number Of Circuits: | 1 |
|---|---|---|---|
| Output Type: | Differential | -3db Bandwidth: | 100 KHz |
| Voltage - Input Offset: | 200 µV | Current - Supply: | 5.4mA |
| Current - Output / Channel: | 20 MA | Voltage - Supply Span (Min): | 2.7 V |
| High Light: | AMC1200STDUBRQ1,AMC1200STDUBRQ1 Isolation Amplifier IC |
||
Product Description

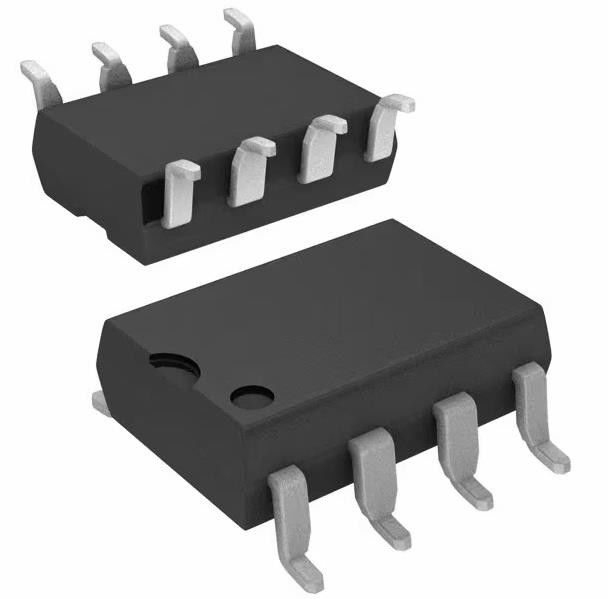

AMC1200STDUBRQ1 Isolation Amplifier 1 Circuit Differential 8-SOP
Specifications of AMC1200STDUBRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | - |
| -3db Bandwidth | 100 kHz |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 5.4mA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SOP |
| Base Product Number | AMC1200 |
Features of AMC1200STDUBRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Temperature Grade 2: –40°C to 105°C
– HBM ESD Classification Level H2
– CDM ESD Classification Level C3B
• ±250-mV Input Voltage Range Optimized for Shunt Resistors
• Very Low Nonlinearity: 0.075% (max) with 5-V High-Side Supply
• Low Offset Error: 1.5 mV (max)
• Low Noise: 3.1 mVRMS (typical)
• Low High-Side Supply Current: 8 mA (max) at 5 V
• Input Bandwidth: 60 kHz (min)
• Fixed Gain: 8 (0.5% accuracy)
• High Common-Mode Rejection Ratio: 108 dB (typical)
• 3.3-V Operation on Low-Side
• Certified Galvanic Isolation:
– UL1577 and VDE V 0884-10 Approved
– Isolation Voltage: 4250 VPEAK
– Working Voltage: 1200 VPEAK
– Transient Immunity: 10 kV/µs (min)
• Typical 10-Year Lifespan at Rated Working Voltage (see Application Report, SLLA197)
Applications of AMC1200STDUBRQ1
• Isolated Shunt-Resistor-Based Current or Voltage
Sensing in:
– Traction Inverters
– On-Board Chargers
– DC-DC Converters
– Battery Management Systems
Environmental & Export Classifications of AMC1200STDUBRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
