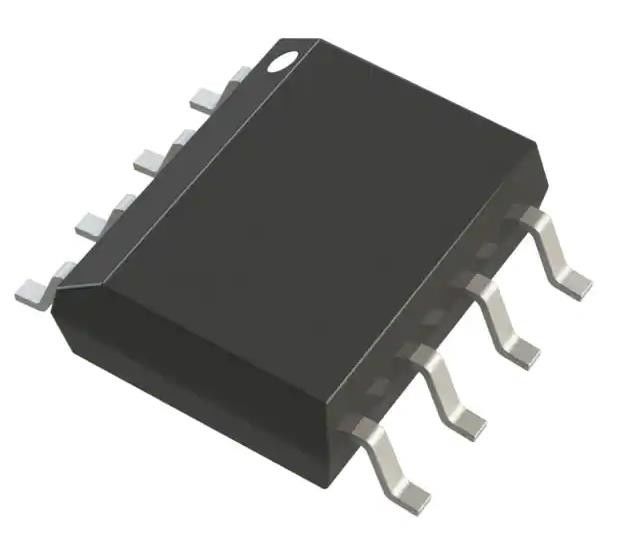

ADUM1200CRZ General Purpose Digital Isolator IC 2500Vrms 2 Channel 25Mbps 25kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADUM1200CRZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 2 | Inputs - Side 1/Side 2: | 2/0 |
|---|---|---|---|
| Channel Type: | Unidirectional | Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs | Data Rate: | 25Mbps |
| Propagation Delay TpLH / TpHL (Max): | 45ns, 45ns | Pulse Width Distortion (Max): | 3ns |
| High Light: | ADUM1200CRZ,ADUM1200CRZ Digital Isolator IC |
||
Product Description
ADUM1200CRZ General Purpose Digital Isolator 2500Vrms 2 Channel 25Mbps 25kV/µs
Specifications of ADUM1200CRZ
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Analog Devices Inc. |
| Series | iCoupler® |
| Package | Tube |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 45ns, 45ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADUM1200 |
Features of ADUM1200CRZ
* Narrow body, RoHS-compliant, SOIC 8-lead package
* Low power operation
- 5 V operation
- 1.1 mA per channel maximum at 0 Mbps to 2 Mbps
- 3.7 mA per channel maximum at 10 Mbps
- 8.2 mA per channel maximum at 25 Mbps
- 3 V operation
- 0.8 mA per channel maximum at 0 Mbps to 2 Mbps
- 2.2 mA per channel maximum at 10 Mbps
- 4.8 mA per channel maximum at 25 Mbps
* Bidirectional communication
* 3 V/5 V level translation
* High temperature operation: 125°C
* High data rate: dc to 25 Mbps (NRZ)
* Precise timing characteristics
- 3 ns maximum pulse width distortion
- 3 ns maximum channel-to-channel matching
* High common-mode transient immunity: >25 kV/μs
* Safety and regulatory approvals
- UL recognition
- 2500 V rms for 1 minute per UL 1577 CSA Component Acceptance Notice 5A VDE Certificate of Conformity
- DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
- VIORM = 560 V peak
* Qualified for automotive applications
Applications of ADUM1200CRZ
* Size-critical multichannel isolation
* SPI interface/data converter isolation
* RS-232/RS-422/RS-485 transceiver isolation
* Digital field bus isolation
* Hybrid electric vehicles, battery monitor, and motor drive
Environmental & Export Classifications of ADUM1200CRZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
