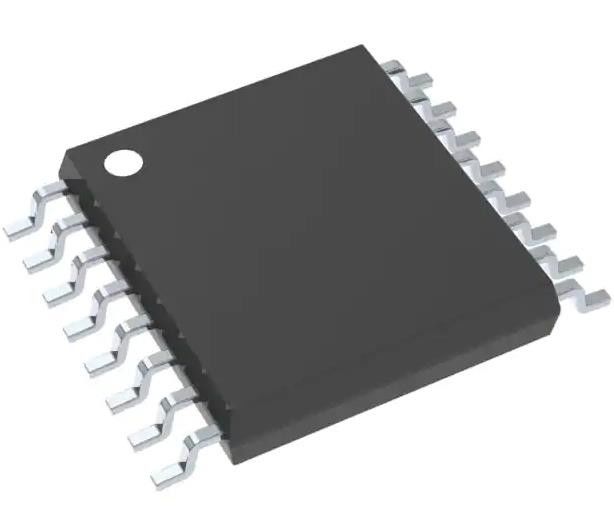

ADS1230IPWR 20 Bit Analog to Digital Converter IC 1 Input 1 Sigma-Delta 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1230IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 20 | Sampling Rate (Per Second): | 80 |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Differential, Single Ended |
| Data Interface: | SPI | Configuration: | PGA-ADC |
| Number Of A/D Converters: | 1 | Architecture: | Sigma-Delta |
| High Light: | ADS1230IPWR,ADS1230IPWR Analog to Digital Converter IC,20 Bit Analog to Digital Converter IC |
||
Product Description
ADS1230IPWR 20 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 16-TSSOP
Specifications of ADS1230IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 20 |
| Sampling Rate (Per Second) | 80 |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.3V |
| Voltage - Supply, Digital | 2.7V ~ 5.3V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1230 |
Features of ADS1230IPWR
* Complete Front-End for Bridge Sensor
* Onboard PGA with Gain of 64 or 128
* Onboard Oscillator
* RMS Noise:40nV at 10SPS (G = 128)88nV at 80SPS (G = 128)
* 18-Bit Noise-Free Resolution
* Selectable 10SPS or 80SPS Data Rates
* Simultaneous 50Hz and 60Hz Rejection at10SPS
* External Voltage Reference up to 5V forRatiometric Measurements
* Simple, Pin-Driven Control
* Two-Wire Serial Digital Interface
* Tiny 16-pin TSSOP Package
* Supply Range: 2.7V to 5.3V
* -40°C to +85°C Temperature Range
Applications of ADS1230IPWR
• Weigh Scales
• Strain Gauges
• Pressure Sensors
• Industrial Process Control
Environmental & Export Classifications of ADS1230IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
