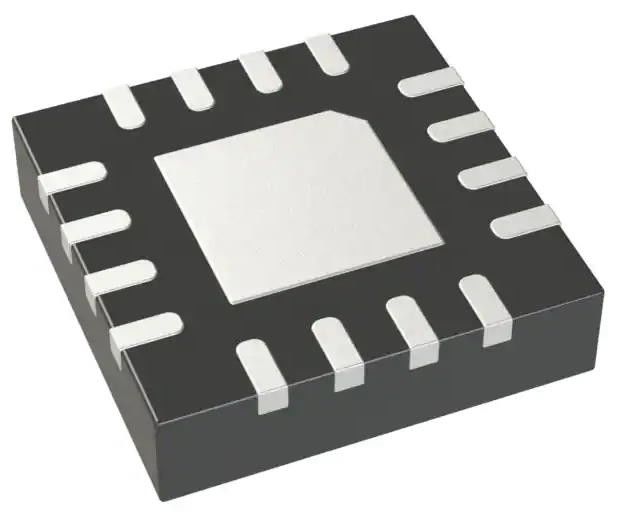

ADA4930-1YCPZ-R7 Differential Amplifier IC 1 Circuit Differential 16-LFCSP-VQ (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADA4930-1YCPZ-R7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Output Type: | Differential |
|---|---|---|---|
| Slew Rate: | 3400V/µs | -3db Bandwidth: | 1.35 GHz |
| Current - Input Bias: | 23 µA | Voltage - Input Offset: | 150 µV |
| Current - Supply: | 34mA | Current - Output / Channel: | 30 MA |
| High Light: | ADA4930-1YCPZ-R7,ADA4930-1YCPZ-R7 Differential Amplifier IC |
||
Product Description
ADA4930-1YCPZ-R7 Differential Amplifier 1 Circuit Differential 16-LFCSP-VQ (3x3)
Specifications of ADA4930-1YCPZ-R7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Differential |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 3400V/µs |
| -3db Bandwidth | 1.35 GHz |
| Current - Input Bias | 23 µA |
| Voltage - Input Offset | 150 µV |
| Current - Supply | 34mA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3.3 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (3x3) |
| Base Product Number | ADA4930 |
Features of ADA4930-1YCPZ-R7
* Low input voltage noise: 1.2 nV/√Hz
* Low common-mode output: 0.9 V on single supply
* Extremely low harmonic distortion
−104 dBc HD2 at 10 MHz
−79 dBc HD2 at 70 MHz
−73 dBc HD2 at 100 MHz
−101 dBc HD3 at 10 MHz
−82 dBc HD3 at 70 MHz
−75 dBc HD3 at 100 MHz
* High speed
−3 dB bandwidth of 1.35 GHz, G = 1
* Slew rate: 3400 V/μs, 25% to 75%
* 0.1 dB gain flatness to 380 MHz
* Fast overdrive recovery of 1.5 ns
* 0.5 mV typical offset voltage
* Externally adjustable gain
* Differential-to-differential or single-ended-to-differential operation
* Adjustable output common-mode voltage
* Single-supply operation: 3.3 V or 5 V
Applications of ADA4930-1YCPZ-R7
* ADC drivers
* Single-ended-to-differential converters
* IF and baseband gain blocks
* Differential buffers
* Line drivers
Environmental & Export Classifications of ADA4930-1YCPZ-R7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
