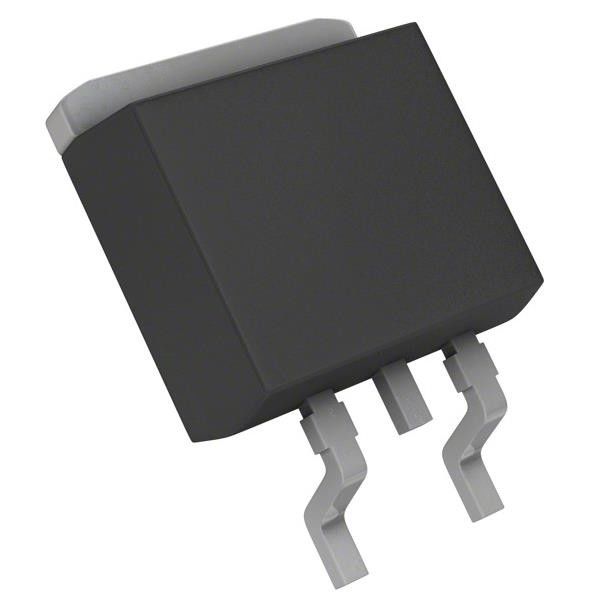

2SB1182-TL Bipolar BJT Transistor PNP 32 V 2 A 100MHz 10 W Surface Mount CPT3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2SB1182-TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 0.083333333 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 32 V | Vce Saturation (Max) @ Ib, Ic: | 800mV @ 200mA, 2A |
| Current - Collector Cutoff (Max): | 100nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 180 @ 500mA, 3V |
| Power - Max: | 10 W | Frequency - Transition: | 100MHz |
| High Light: | 2SB1182-TL,2SB1182-TL BJT Transistor |
||
Product Description
2SB1182-TL Bipolar (BJT) Transistor PNP 32 V 2 A 100MHz 10 W Surface Mount CPT3
Specifications of 2SB1182-TL
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.083333333 |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 500mA, 3V |
| Power - Max | 10 W |
| Frequency - Transition | 100MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | CPT3 |
| Base Product Number | 2SB1182 |
Features of 2SB1182-TL
1) Low VCE(sat). VCE(sat) = 0.5V (Typ.) (IC/IB = 2A / 0.2A)
2) Complements 2SD1758 / 2SD1862.
Applications of 2SB1182-TL
* Epitaxial planar type
* PNP silicon transistor
Environmental & Export Classifications of 2SB1182-TL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
