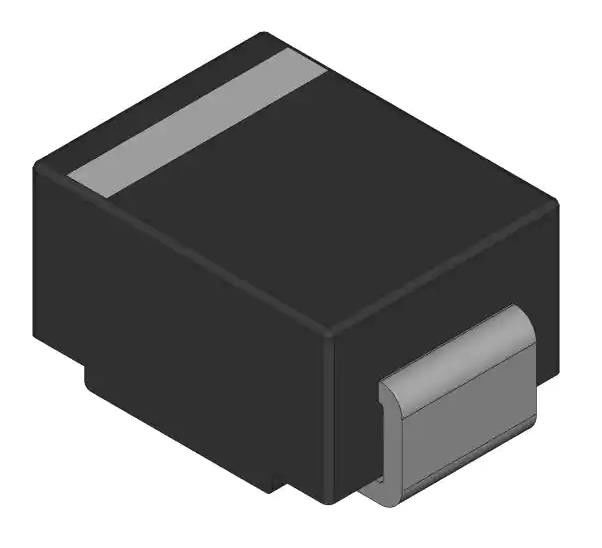

1SMB5936BT3G Zener Diode Electronic Components 30 V 3 W ±5% Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1SMB5936BT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 30 V | Tolerance: | ±5% |
|---|---|---|---|
| Power - Max: | 3 W | Impedance (Max) (Zzt): | 28 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 22.8 V | Voltage - Forward (Vf) (Max) @ If: | 1.5 V @ 200 MA |
| Operating Temperature: | -65°C ~ 150°C | Mounting Type: | Surface Mount |
| High Light: | 1SMB5936BT3G,1SMB5936BT3G Electronic Components |
||
Product Description
1SMB5936BT3G Zener Diode Electronic Components 30 V 3 W ±5% Surface Mount SMB
Specifications of 1SMB5936BT3G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Voltage - Zener (Nom) (Vz) | 30 V |
| Tolerance | ±5% |
| Power - Max | 3 W |
| Impedance (Max) (Zzt) | 28 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 22.8 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | 1SMB5936 |
Features of 1SMB5936BT3G
• Zener Voltage Range − 3.3 V to 200 V
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Flat Handling Surface for Accurate Placement
• Package Design for Top Side or Bottom Circuit Board Mounting
• AEC−Q101 Qualified and PPAP Capable − SZ1SMB59xxT3G
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• These are Pb−Free Devices*
Applications of 1SMB5936BT3G
This complete new line of 3 W Zener diodes offers the following advantages.
Environmental & Export Classifications of 1SMB5936BT3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
